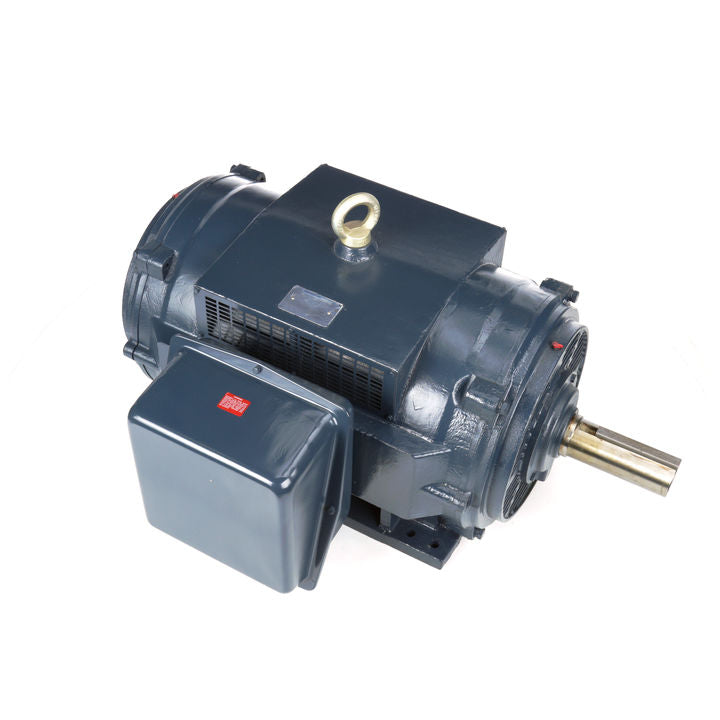

Marathon Electric GT0075, 40 Hp, 1200 Rpm, 364T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 364TTDBD6086.

GT0075, 40 Hp, 1200 Rpm, 364T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 364TTDBD6086.

Engineering Data

Output HP:40 Hp
Output KW:30.0 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:97.0/48.5 A
Speed:1188 rpm
Service Factor:1.15
Phase:3
Efficiency:94.1 %
Power Factor:82
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:364T
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6314
Opp Drive End Bearing Size:6313
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Part Wdg Start & Wye Start Delta Run Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:.204 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:31.69 in
Shaft Diameter:2.375 in
Shaft Extension:5.88 in
Assembly/Box Mounting:F1/F2 CAPABLE
