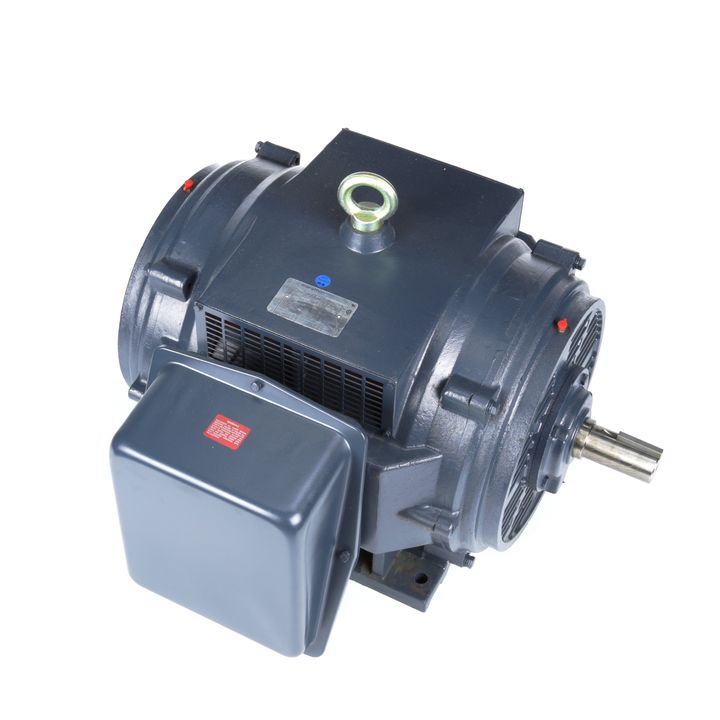

Marathon Electric GT0093A, 75 Hp, 1800 Rpm, 404TS FR, 230/460 Vac, 3 PH, Dripproof, C-Face with Base, Close-Coupled Pump, Premium Motor, 404TSTDCD6060

GT0093A, 75 Hp, 1800 Rpm, 404TS FR, 230/460 Vac, 3 PH, Dripproof, C-Face with Base, Close-Coupled Pump, Premium Motor, 404TSTDCD6060

Engineering Data

Output HP : 100 Hp
Output KW : 75.0 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 228.0/114.0 A
Speed : 1788 rpm
Service Factor : 1.15
Phase : 3
Efficiency : 95.4 %
Duty : Continuous
Insulation Class : F Design
Code : B KVA
Code : G Frame : 404TS
Enclosure : Drip Proof Overload
Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6316
Opp Drive End Bearing Size : 6315
UL : Recognized CSA : Y
CE : Y IP Code : 22
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Wye Start Delta Run Or Inverter
Poles : 4
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Cast Iron
Shaft Type : TS
Overall Length : 33.86 in
Frame Length : 19.69 in
Shaft Diameter : 2.125 in
Shaft Extension : 4.25 in
Assembly/Box Mounting : F1/F2 CAPABLE
