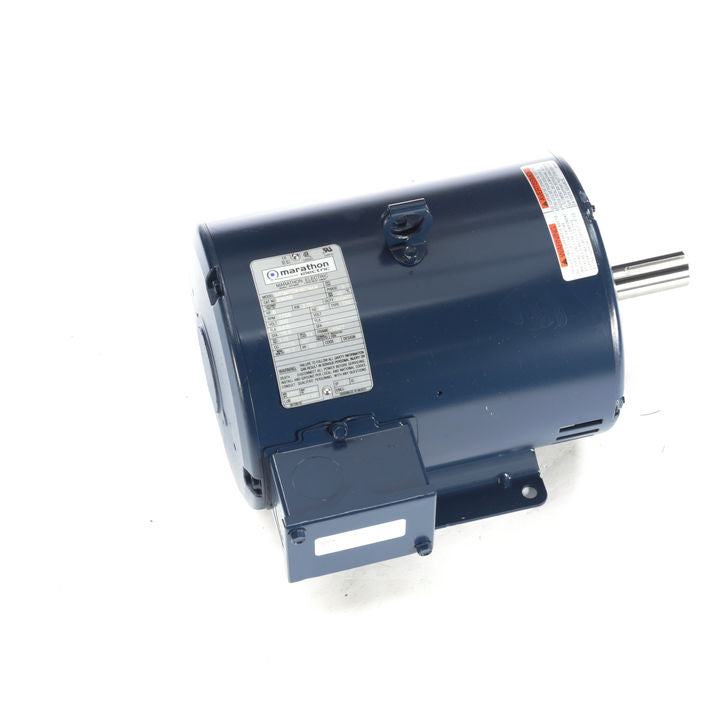

Marathon Electric GT0813, 5 Hp, 1800 Rpm, 184T FR, 200 Vac, 3 PH, Dripproof, Rigid Base, 184TTDB6039

Marathon Electric GT0813, 5 Hp, 1800 Rpm, 184T FR, 200 Vac, 3 PH, Dripproof, Rigid Base, 184TTDB6039

$549.93
$549.93
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$549.93 $522.44
Sale

GT0813, 5 Hp, 1800 Rpm, 184T FR, 200 Vac, 3 PH, Dripproof, Rigid Base, 184TTDB6039

Engineering Data

Output HP  5 Hp
Output KW  3.7 kW
Frequency  60 Hz
Voltage  200 V
Current  14.5 A
Speed  1755 rpm
Service Factor  1.15
Phases  3
Efficiency  89.5 %
Duty  CONTINUOUS
Insulation Class  F
Design Cod  B
KVA Code J
Frame 184T
Enclosure  DP
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6206
Opp Drive End Bearing Size  6205
UL  Recognized
CSA  Y
CE  Y
IP Code  12

Technical Specifications

Electrical Type  SQ CAGE IND RUN
Starting Method  ACROSS THE LINE
Poles  4
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  ROLLED STEEL
Shaft Type  T
Overall Length  14.19 in
Frame Length  10 in
Shaft Diameter  1.13 in
Shaft Extension  2.75 in
Assembly/Box Mounting  F1 ONLY
