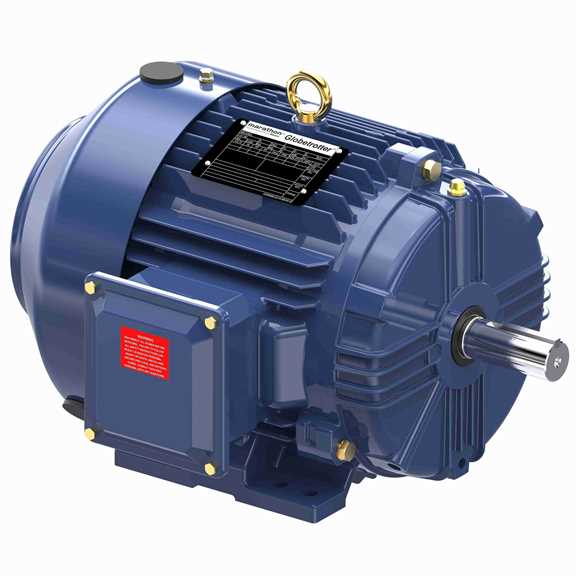

Marathon Electric GT1013A, 5 Hp, 1800 Rpm, 184T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, General Purpose Motor, 184TTFCD6026.

GT1013A, 5 Hp, 1800 Rpm, 184T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, General Purpose Motor, 184TTFCD6026. Engineering Data Output HP : 5 HP Output KW : 3.7 kW Frequency : 60 Hz Voltage : 230/460 V Current : 13.0/6.5 A Speed : 1755 RPM Service Factor : 1.15 Phase : 3 Efficiency : 89.5 % Duty : Continuous Insulation Class : F Design Code : B KVA Code : J Frame : 184T Enclosure : Totally Enclosed Fan Cooled Overload Protector : No Ambient Temperature : 40 °C Drive End Bearing Size : 6206 Opp Drive End Bearing Size : 6205 UL : Listed CSA : Y CE : Y IP Code : 55 Technical Specifications Electrical Type : Squirrel Cage Inverter Rated Starting Method : Line Or Inverter Poles : 4 Rotation : Reversible Mounting : Rigid Base Motor Orientation : Horizontal Drive End Bearing : Ball Opp Drive End Bearing : Ball Frame Material : Cast Iron Shaft Type : T Overall Length : 16.08 in Frame Length : 6.85 in Shaft Diameter : 1.125 in Shaft Extension : 2.75 in Assembly/Box Mounting : F1/F2 CAPABLE UPC : 722856064608 Weight : 111.00 LB
