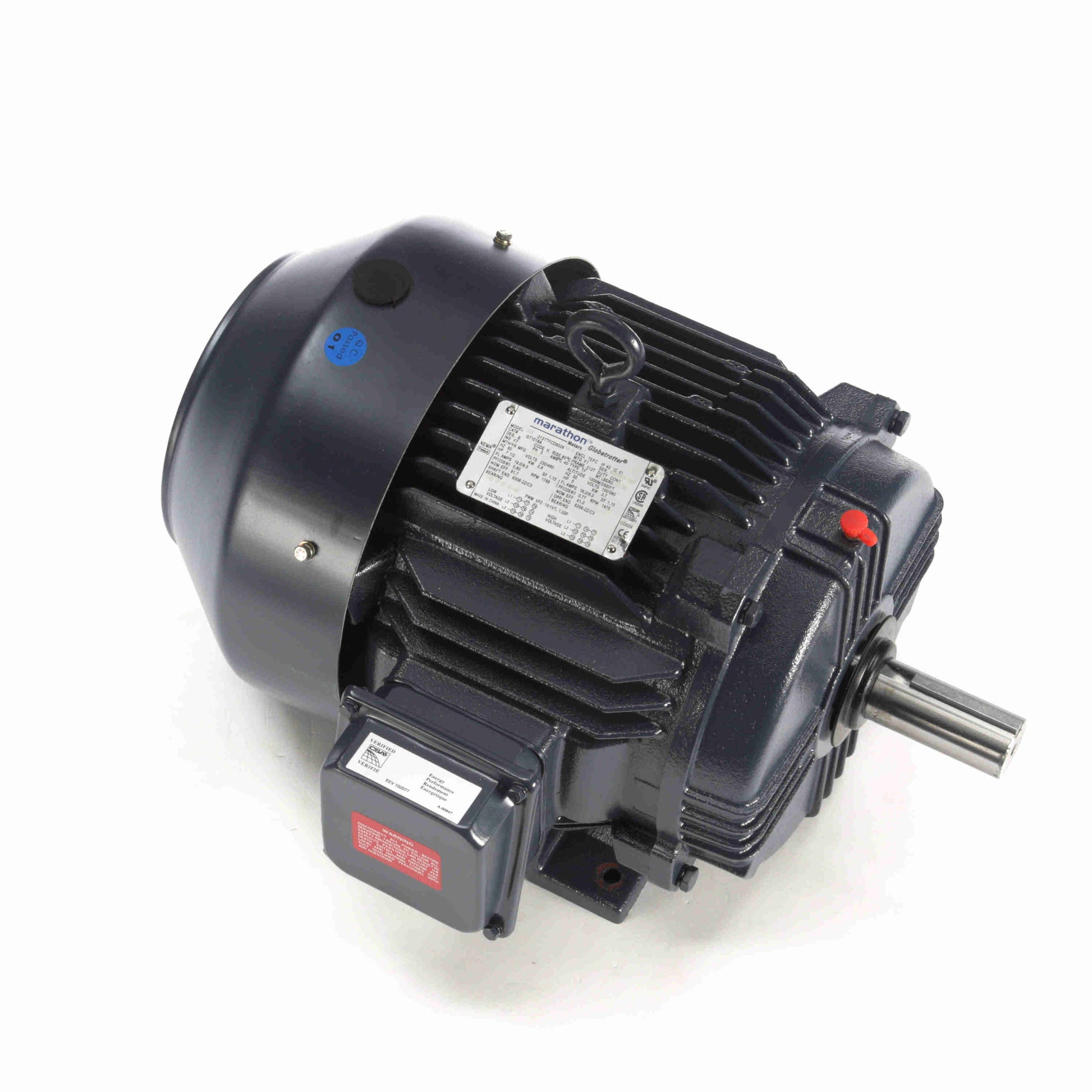

Marathon Electric GT1016A, 7 1/2 Hp, 1800 Rpm, 213T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, General Purpose Motor, 213TTFCD6026.

GT1016A, 7 1/2 Hp, 1800 Rpm, 213T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, General Purpose Motor, 213TTFCD6026.

Engineering Data

Output HP : 7.50 HP
Output KW : 5.6 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 19.0/9.5 A
Speed : 1768 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 93.3 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : H
Frame : 213T
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6308
Opp Drive End Bearing Size : 6208
UL : Listed
CSA : Y CE : Y IP Code : 55
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Line Or Inverter
Poles : 4
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Cast Iron
Shaft Type : T
Overall Length : 18.53 in
Shaft Diameter : 1.375 in
Shaft Extension : 3.38 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856066428
