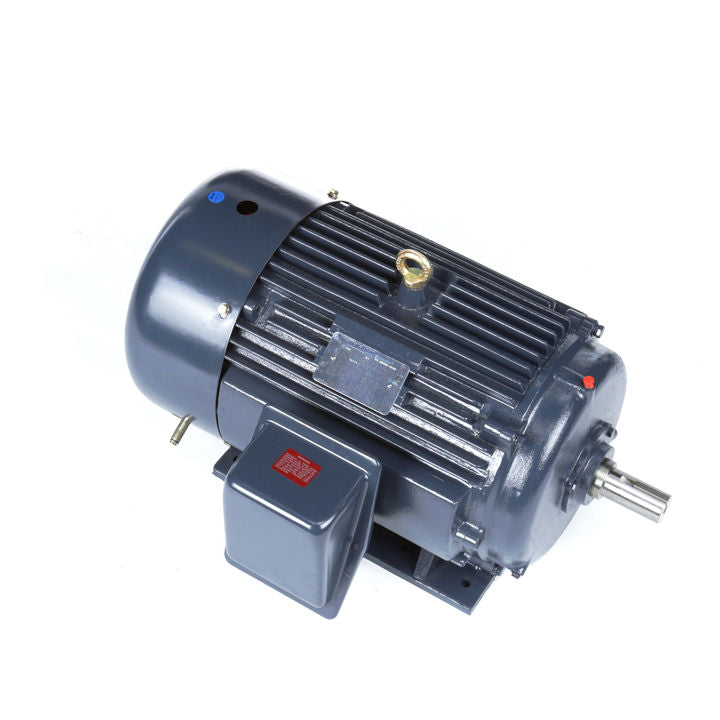

Marathon Electric GT1030A, 30 Hp, 3600 RPM, 286TS FR, 230/460 Vac, 3 PH, TEFC, General Purpose, Globetrotter NEMA Premium Efficiency, 286TSTFCD6001.

GT1030A, 30 Hp, 3600 RPM, 286TS FR, 230/460 Vac, 3 PH, TEFC, General Purpose, Globetrotter NEMA Premium Efficiency, 286TSTFCD6001.

Nameplate Specifications

Output HP  30 Hp
Output KW  22.4 kW
Frequency  60 Hz
Voltage  230/460 V
Current  68/34 A
Speed  3555 rpm
Service Factor  1.15
Phases  3
Efficiency  92.4 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  G
Frame  286TS
Enclosure  TEFC
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6211
Opp Drive End Bearing Size  6211
UL  Recognized
CSA  Y
CE  Y
IP Code  43

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method  Y START D RUN OR INV
Poles  2
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type  TS
Overall Length  30 in
Shaft Diameter  1.63 in
Shaft Extension  3.25 in
Assembly/Box Mounting  F1/F2 CAPABLE
