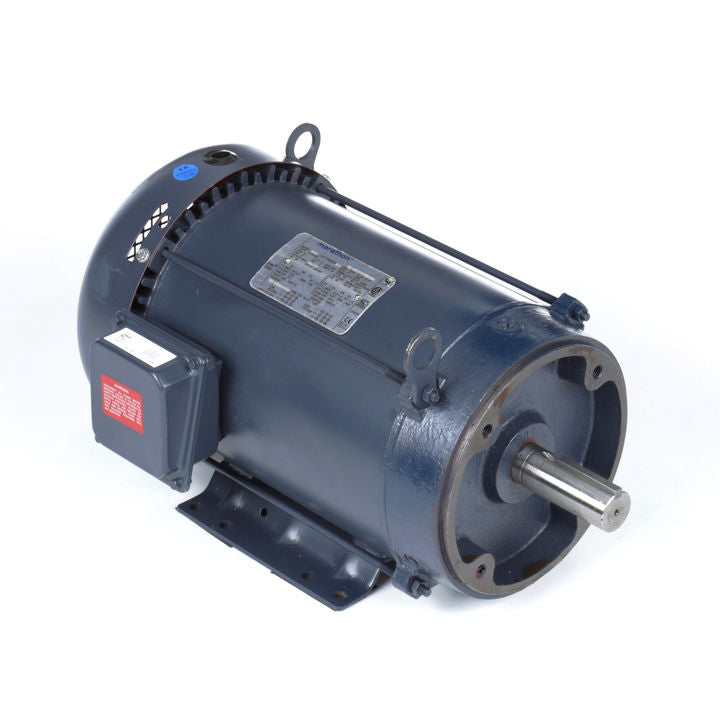

Marathon Electric GT1220A, 10 Hp, 1200 Rpm, 256TC FR, 230/460 V, 3 PH, TEFC, C-Face Footed, General Purpose, Epact Efficiency, 256TTFCD6078

GT1220A, 10 Hp, 1200 Rpm, 256TC FR, 230/460 V, 3 PH, TEFC, C-Face Footed, General Purpose, Epact Efficiency, 256TTFCD6078

Engineering Data

Output HP : 10 HP
Output KW : 7.5 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 25.8/12.9 A
Speed : 1180 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 91 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : G
Frame : 256TC
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6209
UL : Listed
CSA : Y CE : Y IP Code : 55
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Line Or Inverter
Poles : 6
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Cast Iron
Shaft Type : T
Overall Length : 26.39 in
Frame Length : 11.73 in
Shaft Diameter : 1.626 in
Shaft Extension : 4 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856061614
