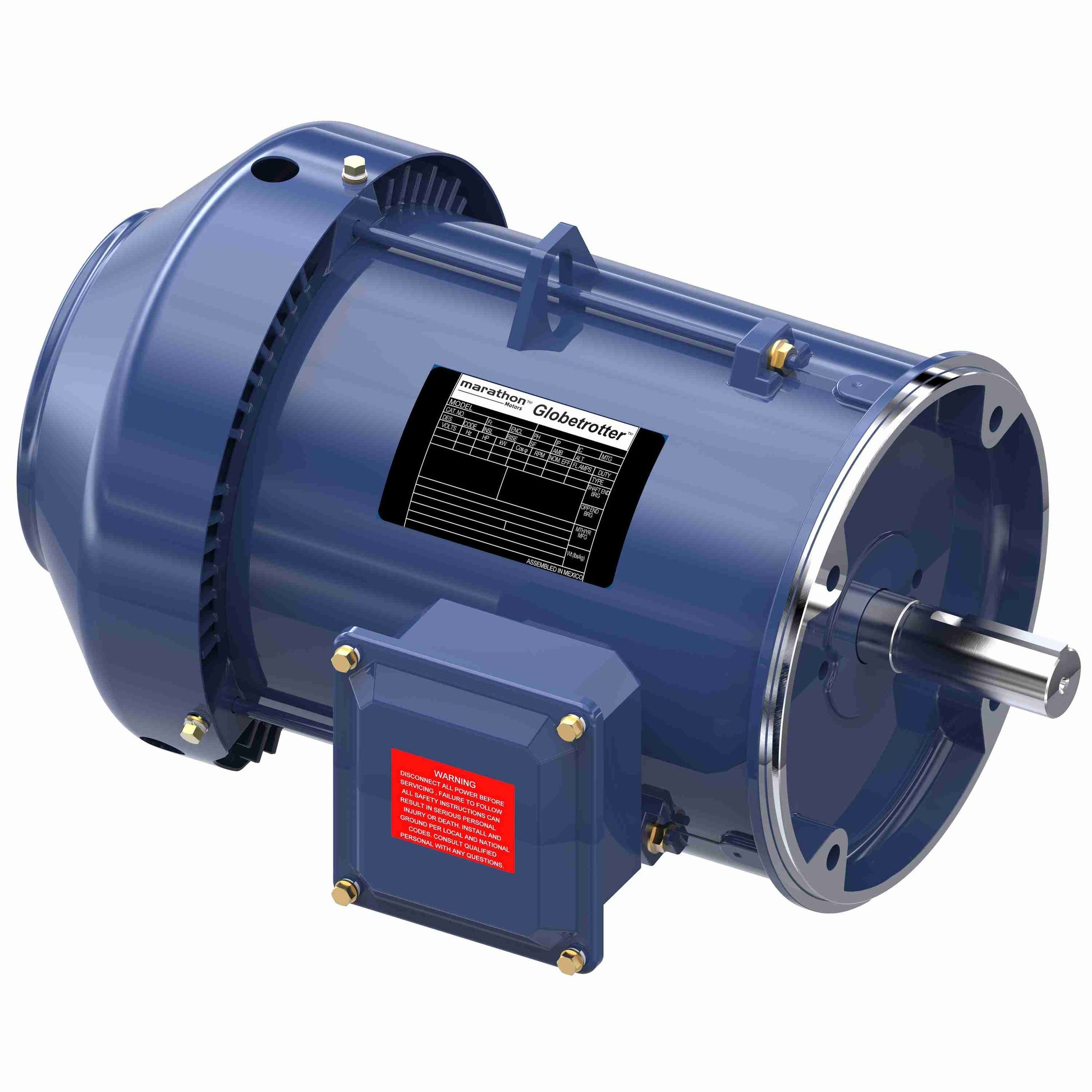

Marathon Electric GT1305A, 1 1/2 Hp, 1200 Rpm, 182TC FR, 230/460 Vac, 3 PH, TEFC, C-Face Footless, General Purpose Motor, 182TTFBD6079.

GT1305A, 1 1/2 Hp, 1200 Rpm, 182TC FR, 230/460 Vac, 3 PH, TEFC, C-Face Footless, General Purpose Motor, 182TTFBD6079.

Engineering Data

Output HP:1.50 Hp
Output KW:1.1 kW
Frequency:60 Hz
Voltage:230/460 V
Current:4.6/2.3 A
Speed:1175 rpm
Service Factor:1.15
Phase:3
Efficiency:87.5 %
Power Factor:70
Duty:Continuous
Insulation Class:F
Design Code:A
KVA Code:N
Frame:182TC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6205
UL:Listed
CSA:Y
CE:YIP Code:43
Hazardous Location:DIVISION 2 T2B
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:6
Rotation:Selective Clockwise
Resistance Main:6.995 Ohms
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:15.85 in
Frame Length:5.85 in
Shaft Diameter:1.125 in
Shaft Extension:2.75 in
Assembly/Box Mounting:F1/F2 CAPABLE
