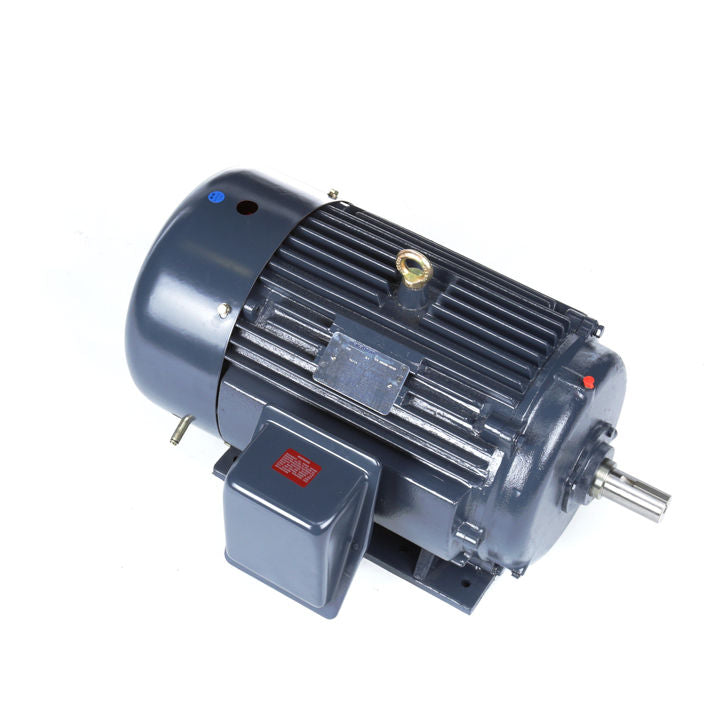

Marathon Electric GT1416, 7 1/2 Hp, 1800 Rpm, 213TC FR, 575 Vac, 3 PH, TEFC, C-Face with Base, General Purpose Motor, 213TTFBA6032.

GT1416, 7 1/2 Hp, 1800 Rpm, 213TC FR, 575 Vac, 3 PH, TEFC, C-Face with Base, General Purpose Motor, 213TTFBA6032.

Engineering Data

Output HP : 7.50 HP
Output KW : 5.0 kW
Frequency : 60 Hz
Voltage : 575 V
Current : 7.5 A
Speed : 1770 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 91.7 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : H
Frame : 213TC
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6207
Opp Drive End Bearing Size : 6206
UL : Recognized
CSA : Y CE : Y IP Code : 43
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Line Or Inverter
Poles : 4
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Shaft Type : T
Overall Length : 19.53 in
Shaft Diameter : 1.375 in
Shaft Extension : 3.37 in
Assembly/Box Mounting : F1/F2 CAPABLE
