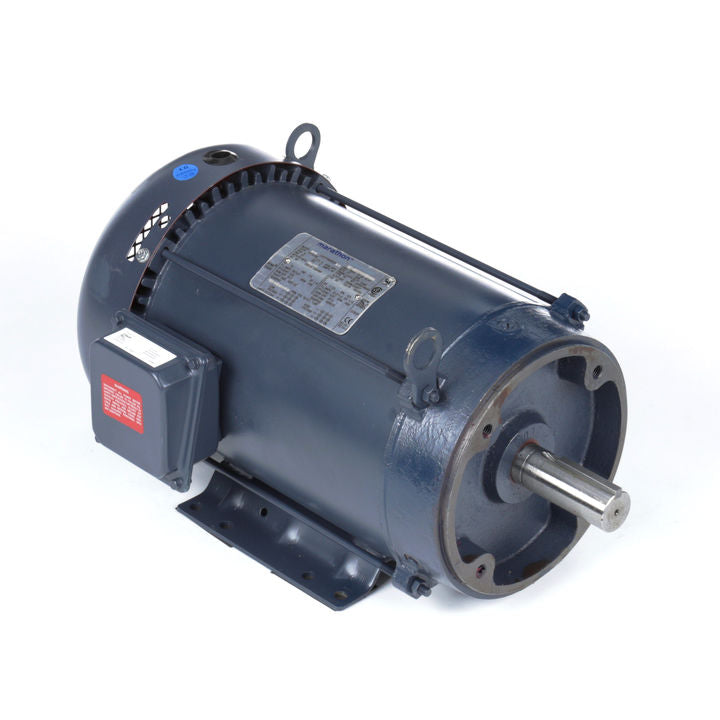

Marathon Electric GT1421, 15 Hp, 3600 Rpm, 254T FR, 575 Vac, 3 PH,TEFC, C-Face with Base, General Purpose Motor, 254TTFCA6007.

GT1421, 15 Hp, 3600 Rpm, 254T FR, 575 Vac, 3 PH,TEFC, C-Face with Base, General Purpose Motor, 254TTFCA6007.

Engineering Data

Output HP : 15 HP
Output KW : 11.2 kW
Frequency : 60 Hz
Voltage : 575 V
Current : 13.6 A
Speed : 3555 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 91 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : G
Frame : 254TC
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6209
Opp Drive End Bearing Size : 6209
UL : Recognized
CSA : Y CE : Y IP Code : 43
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Line Or Inverter
Poles : 2
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Cast Iron
Shaft Type : T
Overall Length : 26.60 in
Shaft Diameter : 1.625 in
Shaft Extension : 4 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856002808
Weight : 336.00 LB
