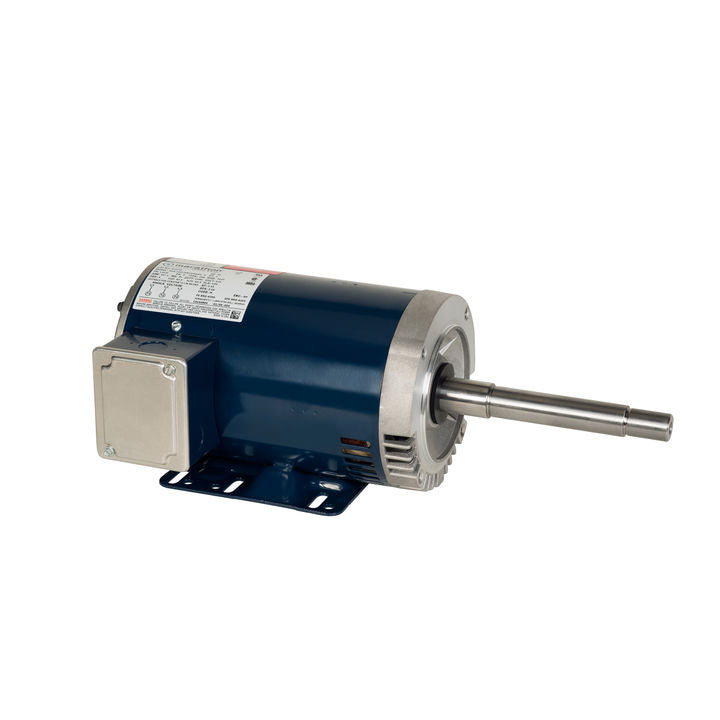

Marathon Electric GT2401, 1 Hp, 1800 Rpm, 143JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 143TTDR16048

GT2401, 1 Hp, 1800 Rpm, 143JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 143TTDR16048

Engineering Data

Nameplate Specifications

Output HP  1 Hp
Output KW  0.75 kW
Frequency  60 Hz
Voltage  230/460 V
Current  3/1.15 A
Speed  1760 rpm
Service Factor  1.15
Phases  3
Efficiency  85.5 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  N
Frame  143JP
Enclosure  DP
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6206
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Y
CE  Y
IP Code  22

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method  LINE OR INVERTER
Poles  2
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL OR SHAFT DOWN
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  ROLLED STEEL
Shaft Type  JP
Overall Length  18.18 in
Frame Length  9.06 in
Shaft Diameter  0.88 in
Shaft Extension  7.31 in
Assembly/Box Mounting  F1 ONLY
