Industrial Motors

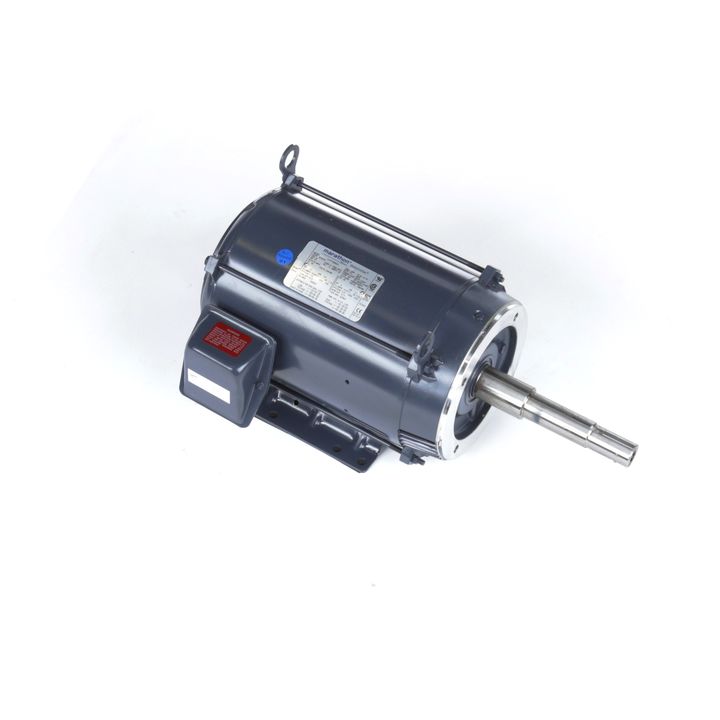

Marathon Electric GT2410A, 3 Hp, 1800 Rpm, 182JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 182TTDBD6037.

Marathon Electric GT2410A, 3 Hp, 1800 Rpm, 182JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 182TTDBD6037.

$549.93
$549.93
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$549.93 $522.44
Sale

GT2410A, 3 Hp, 1800 Rpm, 182JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 182TTDBD6037.

Engineering Data

Output HP:3 Hp
Output KW:2.2 kW
Frequency:60 Hz
Voltage:230/460 V
Current:8.0/4.0 A
Speed:1770 rpm
Service Factor:1.15
Phase:3
Efficiency:89.5 %
Power Factor:78.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:K
Frame:182JP
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6307
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:4
Rotation:Reversible
Resistance Main:4.12 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:JP
Shaft Diameter:0.874 in
Assembly/Box Mounting:F1/F2 CAPABLE
