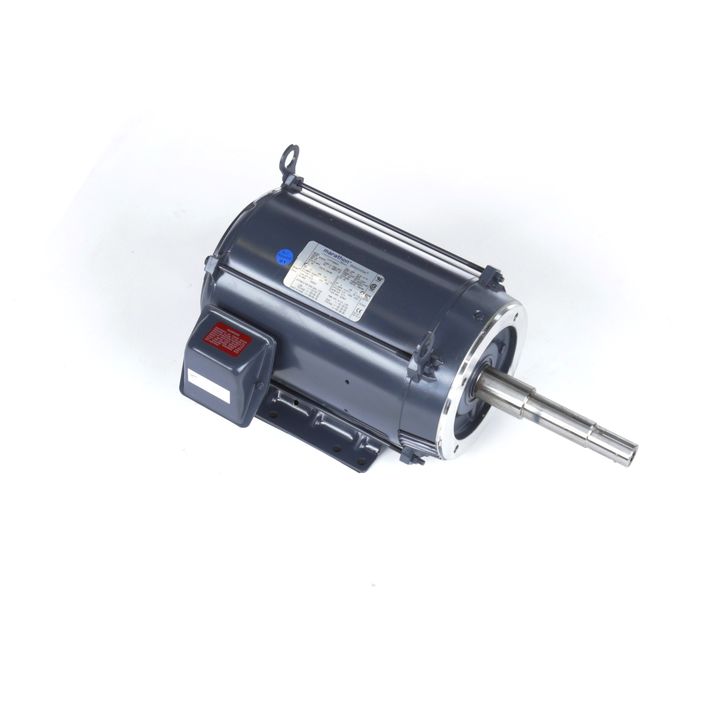

Marathon Electric GT2411, 3 Hp, 1200 Rpm, 213JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 213TTDB6085

GT2411, 3 Hp, 1200 Rpm, 213JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 213TTDB6085

Engineering Data

Output HP:3 Hp
Output KW:2.2 kW
Frequency:60 Hz
Voltage:230/460 V
Current:8.8/4.4 A
Speed:1182 rpm
Service Factor:1.15
Phase:3
Efficiency:88.5 %
Power Factor:72
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:J
Frame:213JPV
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6307
Opp Drive End Bearing Size:6206
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:2.605 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal Or Shaft Down
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:JP
Overall Length:23.11 in
Shaft Diameter:1.25 in
Shaft Extension:8.14 in
Assembly/Box Mounting:F1/F2 CAPABLE
