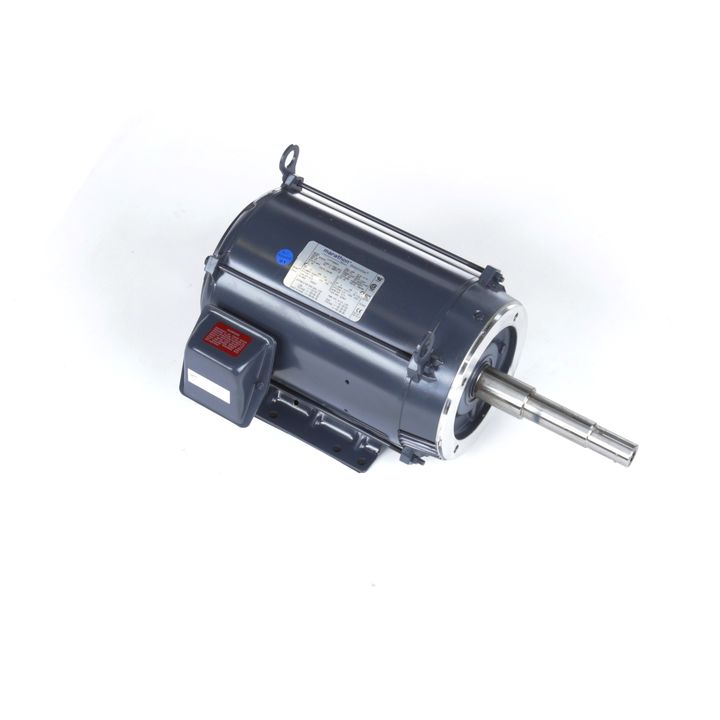

Marathon Electric GT2416A, 7 1/2 Hp, 1800 Rpm, 213TV FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 213TTDBD6037.

GT2416A, 7 1/2 Hp, 1800 Rpm, 213TV FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 213TTDBD6037.

Engineering Data

Output HP:7.50 Hp
Output KW:5.6 kW
Frequency:60 Hz
Voltage:230/460 V
Current:19.8/9.9 A
Speed:1766 rpm
Service Factor:1.15
Phase:3
Efficiency:91.7 %
Power Factor:77.3
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:H
Frame:213TV
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6307
Opp Drive End Bearing Size:6202
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:4
Rotation:Reversible
Resistance Main:1.698 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal Or Shaft Down
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:23.11 in
Frame Length:11.15 in
Shaft Diameter:1.249 in
Shaft Extension:8.39 in
Assembly/Box Mounting:F1/F2 CAPABLE
