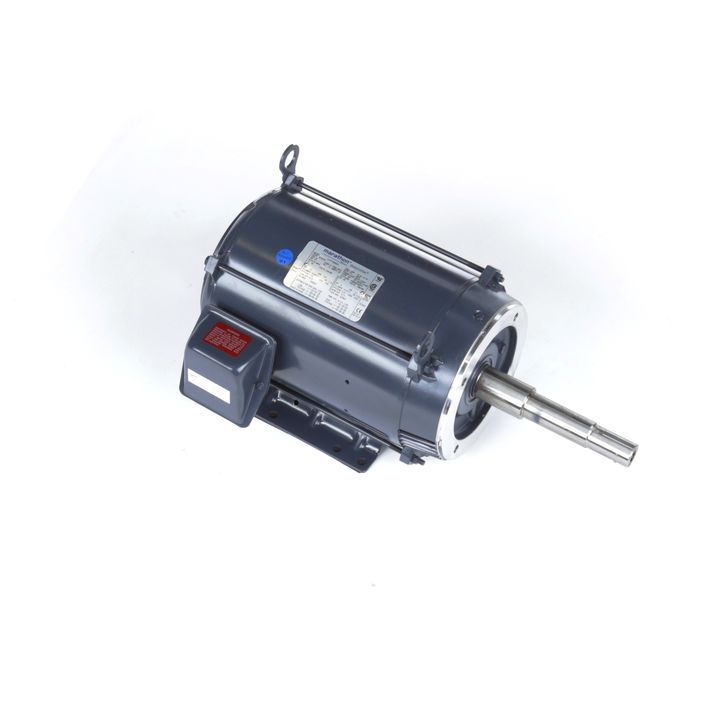

Marathon Electric GT2417, 7 1/2 Hp, 1200 Rpm, 1254JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 254TTDCA6085.

GT2417, 7 1/2 Hp, 1200 Rpm, 1254JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 254TTDCA6085.

Engineering Data

Output HP:7.50 Hp
Output KW:5.6 kW
Frequency:60 Hz
Voltage:230/460 V
Current:21.0/10.5 A
Speed:1182 rpm
Service Factor:1.15
Phase:3
Efficiency:90.2 %
Power Factor:73.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:254JPV
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6309
Opp Drive End Bearing Size:6208
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:1.62 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal Or Shaft Down
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:JP
Overall Length:27.32 in
Shaft Diameter:1.25 in
Shaft Extension:8.16 in
Assembly/Box Mounting:F1/F2 CAPABLE
