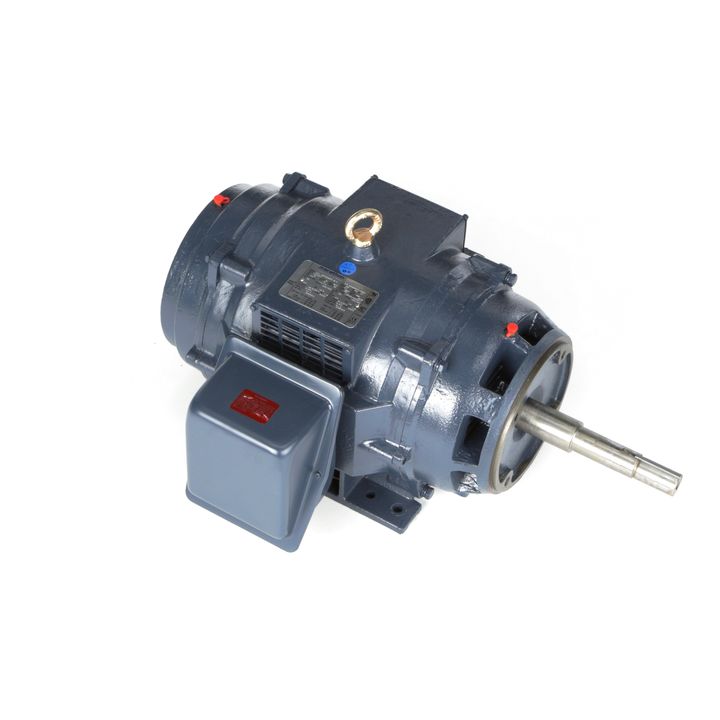

Marathon Electric GT2426, 20 Hp, 1200 Rpm, 286JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 286TTDCA6085.

GT2426, 20 Hp, 1200 Rpm, 286JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 286TTDCA6085.

Engineering Data

Output HP:20 Hp
Output KW:14.9 kW
Frequency:60 Hz
Voltage:230/460 V
Current:54.0/27.0 A
Speed:1182 rpm
Service Factor:1.15
Phase:3
Efficiency:92.4 %
Power Factor:75
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:F
Frame:286JPV
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6311
Opp Drive End Bearing Size:6210
UL:Recognized
CSA:Y
CE:YIP Code:12
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Wye Start Delta Run Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:.5005 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal Or Shaft Down
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:JP
Overall Length:29.99 in
Frame Length:13.98 in
Shaft Diameter:1.249 in
Shaft Extension:8.4 in
Assembly/Box Mounting:F1/F2 CAPABLE
