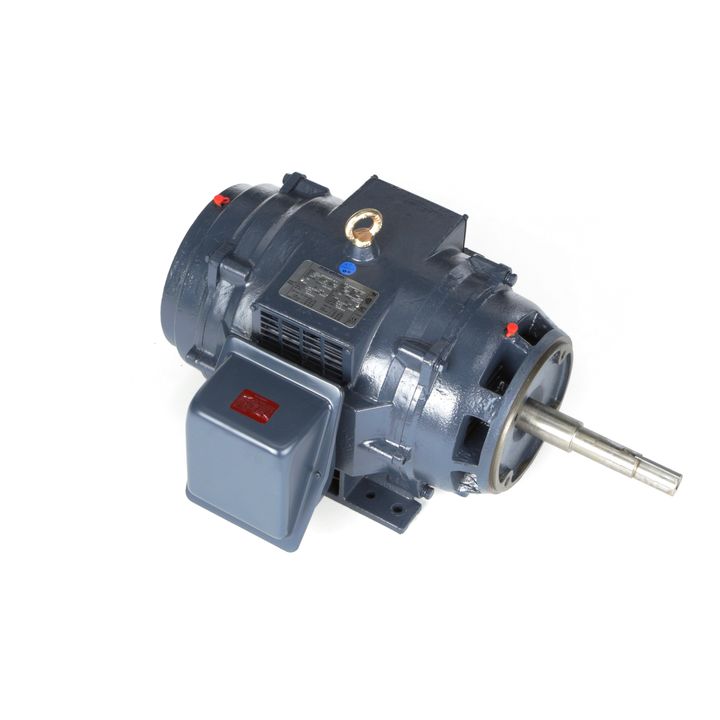

Marathon Electric GT2436, 50 Hp, 3600 Rpm, 324JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 324TTDCA6012.

GT2436, 50 Hp, 3600 Rpm, 324JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 324TTDCA6012.

Engineering Data

Nameplate Specifications

Output HP  50 Hp
Output KW  37 kW
Frequency  60 Hz
Voltage  230/460 V
Current  93/46.5 A
Speed 3572 RPM
Service Factor  1.15
Phases  3
Efficiency  93 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  G
Frame  324JP
Enclosure  DP
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6212
Opp Drive End Bearing Size  6212
UL  Recognized
CSA  Y
CE  Y
IP Code  12

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method  Y START D RUN OR INV
Poles  2
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type  JP
Overall Length  31.82 in
Shaft Diameter  1.25 in
Shaft Extension  8.12 in
Assembly/Box Mounting  F1/F2 CAPABLE
