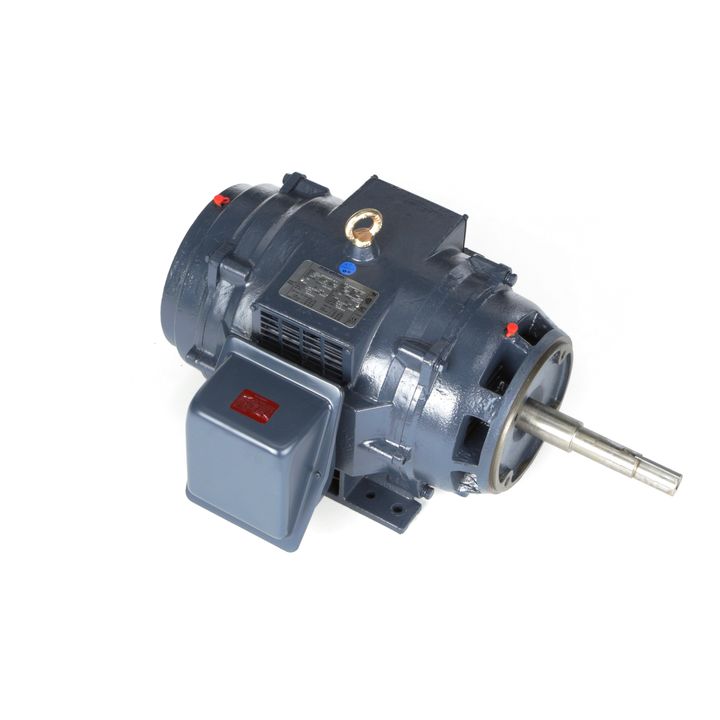

Marathon Electric GT2437, 50 Hp, 1800 Rpm, 326JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 326TTDCA6037.

GT2437, 50 Hp, 1800 Rpm, 326JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 326TTDCA6037.

Engineering Data

Nameplate Specifications

Output HP  50 Hp
Output KW  37 kW
Frequency  60 Hz
Voltage  230/460 V
Current  118/59 A
Speed 1785 RPM
Service Factor  1.15
Phases  3
Efficiency  94.5 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  F
Frame  324JP
Enclosure  DP
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6312
Opp Drive End Bearing Size  6311
UL  Recognized
CSA  Y
CE  Y
IP Code  12

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method  Y START D RUN OR INV
Poles  4
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type  JP
Overall Length  33 in
Shaft Diameter  1.25 in
Shaft Extension  8.12 in
Assembly/Box Mounting  F1/F2 CAPABLE
