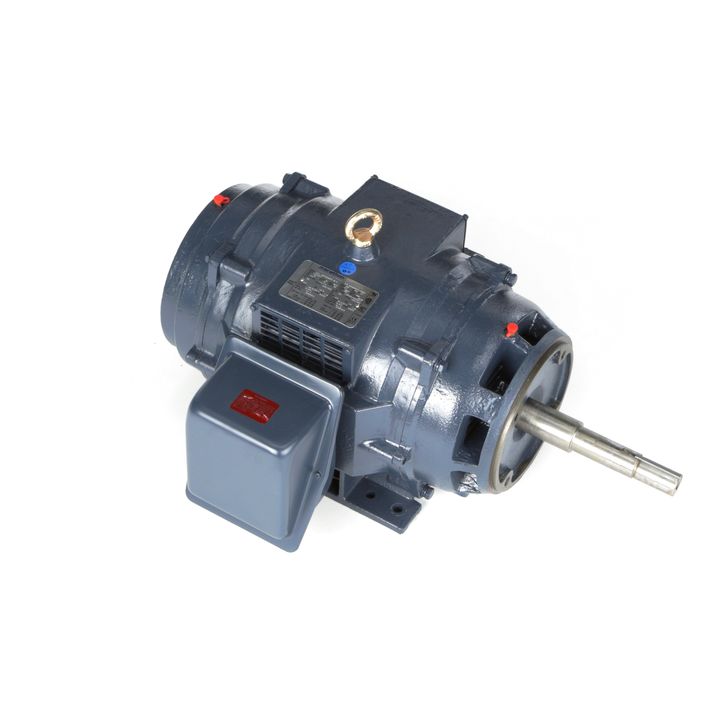

Marathon Electric GT2458, 10 Hp, 1200 Rpm, 256JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 256TTDBD6085.

GT2458, 10 Hp, 1200 Rpm, 256JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 256TTDBD6085.

Engineering Data

Output HP:10 Hp
Output KW:7.5 kW
Frequency:60 Hz
Voltage:230/460 V
Current:25.6/12.8 A
Speed:1182 rpm
Service Factor:1.15
Phase:3
Efficiency:91.7 %
Power Factor:80
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:H
Frame:256JPV
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6309
Opp Drive End Bearing Size:6208
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:1.066 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal Or Shaft Down
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:JP
Overall Length:28.90 in
Frame Length:12.20 in
Shaft Diameter:1.249 in
Shaft Extension:8.41 in
Assembly/Box Mounting:F1/F2 CAPABLE
