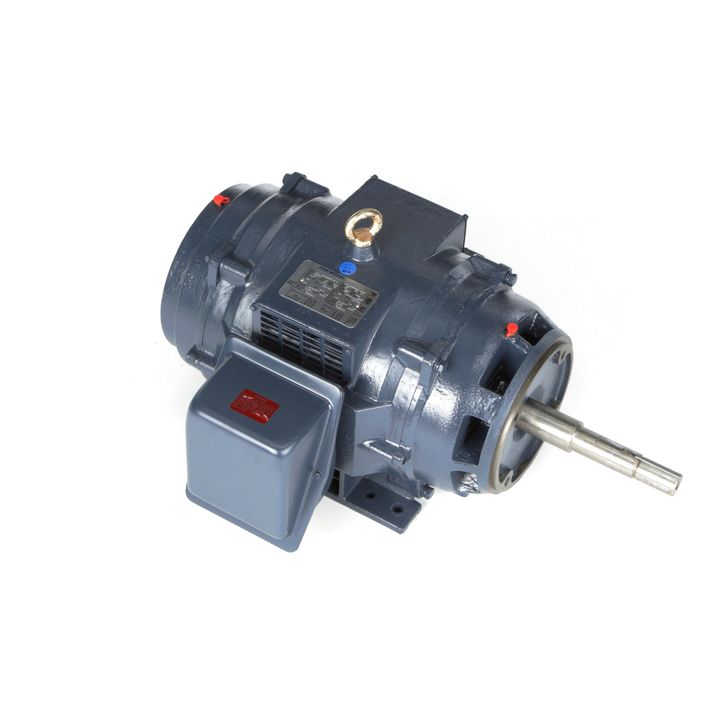

Marathon Electric GT2459, 15 Hp, 1200 Rpm, 256JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 254TTDBD6037.

GT2459, 15 Hp, 1200 Rpm, 256JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 254TTDBD6037.

Engineering Data

Output HP:15 Hp
Output KW:11.2 kW
Frequency:60 Hz
Voltage:230/460 V
Current:36.5/18.3 A
Speed:1774 rpm
Service Factor:1.15
Phase:3
Efficiency:93 %
Power Factor:81
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:254JP
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6309
Opp Drive End Bearing Size:6208
UL:Recognized
CSA:Y
CE:Y
IP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:4
Rotation:Reversible
Resistance Main:.6729 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:JP
Overall Length:27.32 in
Frame Length:10.62 in
Shaft Diameter:1.249 in
Shaft Extension:8.41 in
Assembly/Box Mounting:F1/F2 CAPABLE
