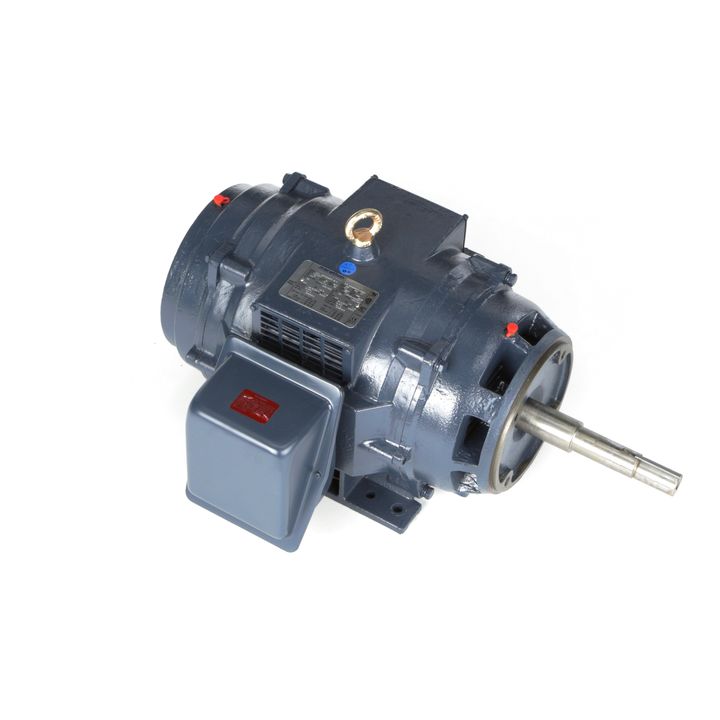

Marathon Electric GT2463, 20 Hp, 1800 Rpm, 256JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 286TTDBD6085.

GT2463, 20 Hp, 1800 Rpm, 256JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 286TTDBD6085.

Engineering Data

Output HP:20 Hp
Output KW:14.9 kW
Frequency:60 Hz
Voltage:230/460 V
Current:52.5/26.3 A
Speed:1182 rpm
Service Factor:1.15
Phase:3
Efficiency:92.4 %
Power Factor:77
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:F
Frame:286JPV
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6311
Opp Drive End Bearing Size:6211
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Wye Start Delta Run Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:.5345 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal Or Shaft Down
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:JP
Overall Length:30.91 in
Frame Length:13.97 in
Shaft Diameter:1.249 in
