Industrial Motors

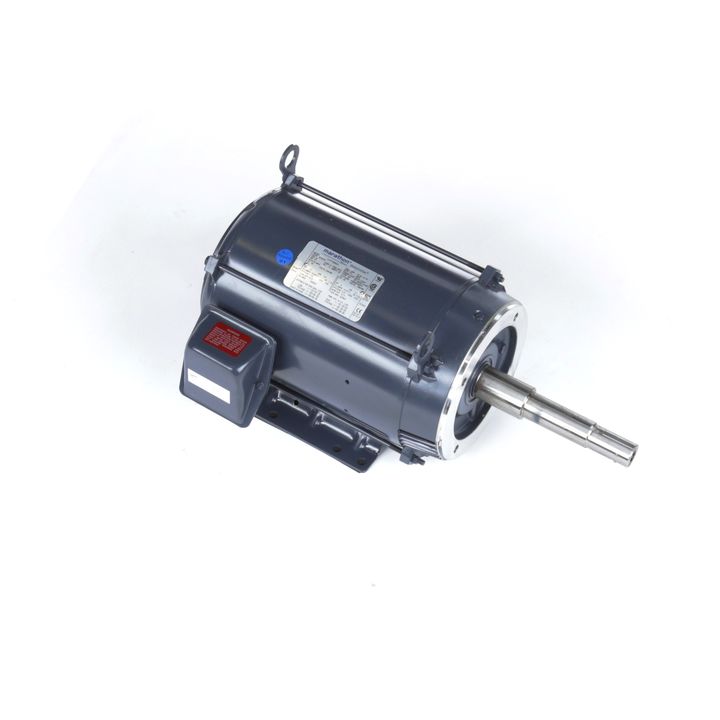

Marathon Electric GT2520, 10 Hp, 1200 Rpm, 256JP FR, 575 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, JP, 256TTDCA6095

Marathon Electric GT2520, 10 Hp, 1200 Rpm, 256JP FR, 575 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, JP, 256TTDCA6095

$4,551.00
$4,551.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$4,551.00 $4,323.45
Sale

GT2520, 10 Hp, 1200 Rpm, 256JP FR, 575 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, JP, 256TTDCA6095

Engineering Data

Output HP:10 Hp
Output KW:7.5 kW
Frequency:60 Hz
Voltage:575 V
Current:11.0 A
Speed:1182 rpm
Service Factor:1.15
Phase:3
Efficiency:91.7 %
Power Factor:74
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:256JPV
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:7309
Opp Drive End Bearing Size:6208
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:1.02 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal Or Shaft Down
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:JP
Overall Length:28.90 in
Shaft Diameter:1.25 in
Shaft Extension:8.16 in
