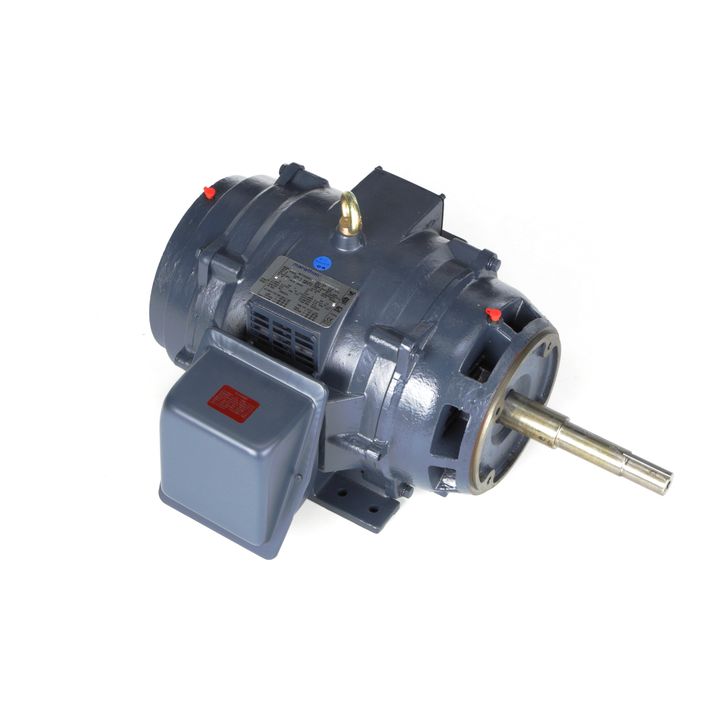

Marathon Electric GT2560, 20 Hp, 1200 Rpm, 284JP FR, 575 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, JP, 284TTDBD6095.

GT2560, 20 Hp, 1200 Rpm, 284JP FR, 575 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, JP, 284TTDBD6095.

Engineering Data

Output HP:15 Hp
Output KW:11.2 kW
Frequency:60 Hz
Voltage:575 V
Current:16.5 A
Speed:1184 rpm
Service Factor:1.15
Phase:3
Efficiency:91.7 %
Power Factor:74.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:284JPV
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6311
Opp Drive End Bearing Size:6211
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:.7266 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal Or Shaft Down
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:JP
Overall Length:29.53 in
Frame Length:12.59 in
Shaft Diameter:1.249 in
Shaft Extension:8.4 in
Assembly/Box Mounting:F1/F2 CAPABLE
