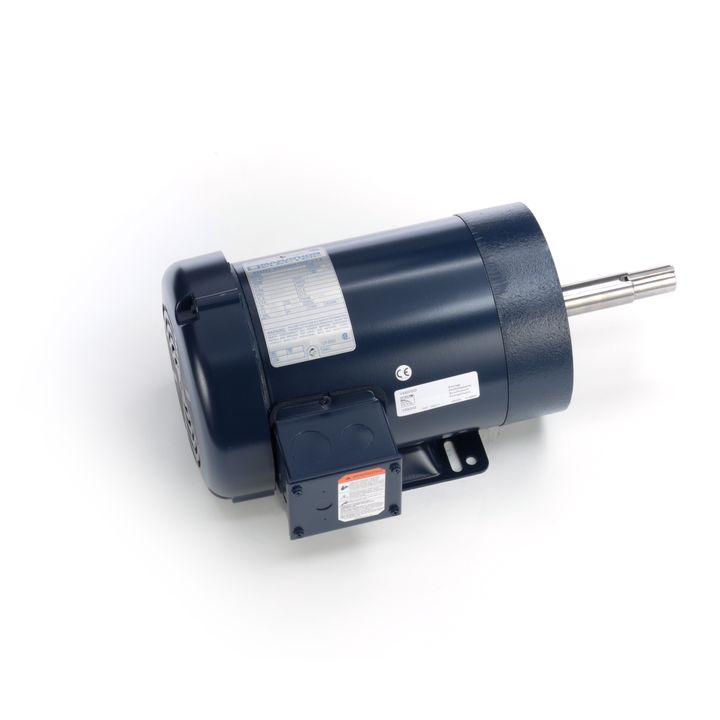

Marathon Electric GT3105, 1 1/2 Hp, 1200 Rpm, 182JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 182TTFB6082

GT3105, 1 1/2 Hp, 1200 Rpm, 182JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 182TTFB6082

Engineering Data

Output HP:1.50 Hp
Output KW:1.1 kW
Frequency:60 Hz
Voltage:230/460 V
Current:4.6/2.3 A
Speed:1180 rpm
Service Factor:1.15
Phase:3
Efficiency:87.5 %
Power Factor:71
Duty:Continuous
Insulation Class:B
Design Code:B
KVA Code:J
Frame:182JMV
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:5.95 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal Or Shaft Down
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:JM
Overall Length:17.51 in
Shaft Diameter:0.875 in
Shaft Extension:4.25 in
Assembly/Box Mounting:F1/F2 CAPABLE
