Industrial Motors

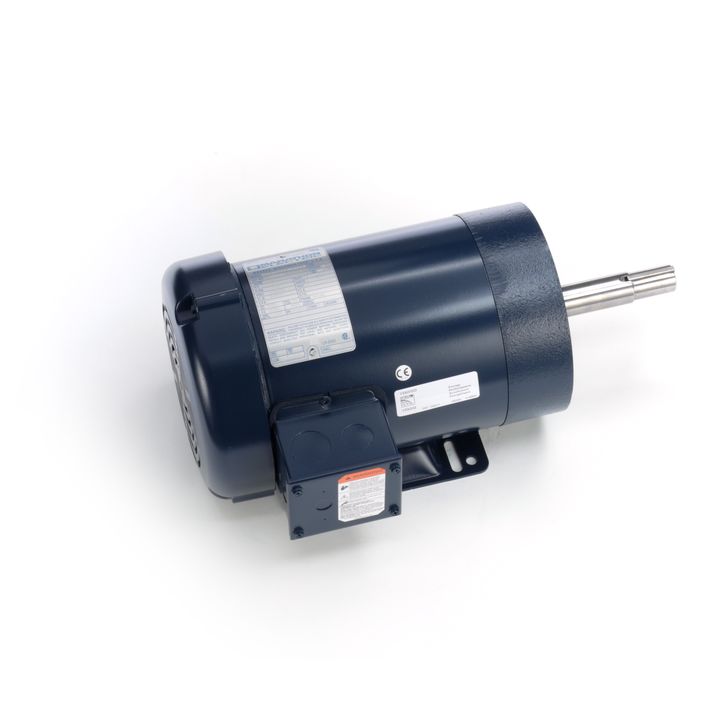

Marathon Electric GT3105A, 1 1/2 Hp, 1200 Rpm, 182JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 182TTFBD6082

Marathon Electric GT3105A, 1 1/2 Hp, 1200 Rpm, 182JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 182TTFBD6082

$763.83
$763.83
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$763.83 $725.64
Sale

GT3105A, 1 1/2 Hp, 1200 Rpm, 182JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 182TTFBD6082

Engineering Data

Output HP:1.50 Hp
Output KW:1.1 kW
Frequency:60 Hz
Voltage:230/460 V
Current:4.6/2.3 A
Speed:1175 rpm
Service Factor:1.15
Phase:3
Efficiency:87.5 %
Power Factor:70
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:K
Frame:182JM
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6307
Opp Drive End Bearing Size:6205
UL:Listed
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:6.995 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:JM
Shaft Diameter:1.25 in
Assembly/Box Mounting:F1/F2 CAPABLE
