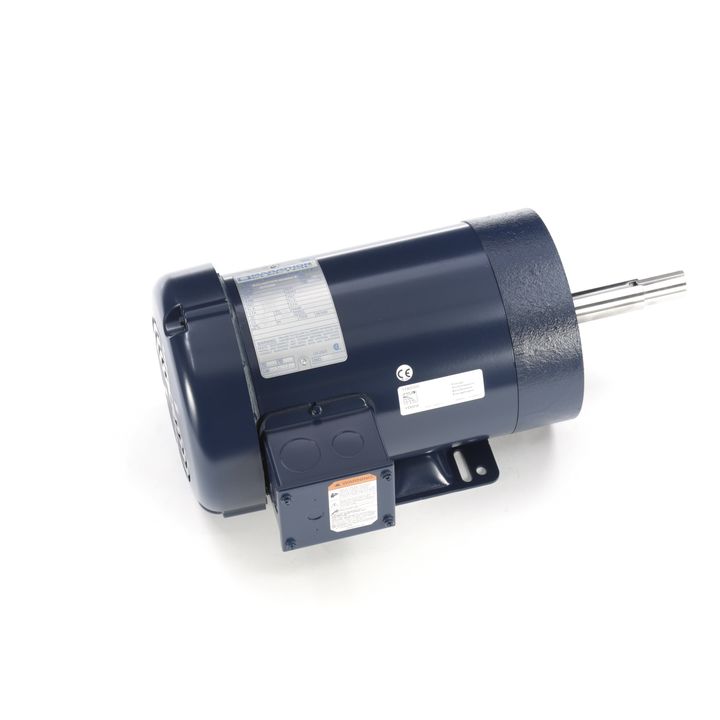

Marathon Electric GT3106, 2 Hp, 3600 Rpm, 145JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 145TTFR16013

GT3106, 2 Hp, 3600 Rpm, 145JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 145TTFR16013

Engineering Data

Nameplate Specifications

Output HP  2 Hp
Output KW  1.49 kW
Frequency  60 Hz
Voltage  230/460 V
Current  5/2.5 A
Speed 3500 RPM
Service Factor  1.15
Phases  3
Efficiency  85.5 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  K
Frame  145 JM
Enclosure  TEFC
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6206
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Y
CE  Y
IP Code  43

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method  LINE OT INVERTER
Poles  4
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL OR SHAFT DOWN
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  ROLLED STEEL
Shaft Type  JM
Overall Length  16.5 in
Frame Length 9.06 in
Shaft Diameter  .88 in
Shaft Extension  4.25 in
Assembly/Box Mounting  F1 ONLY
