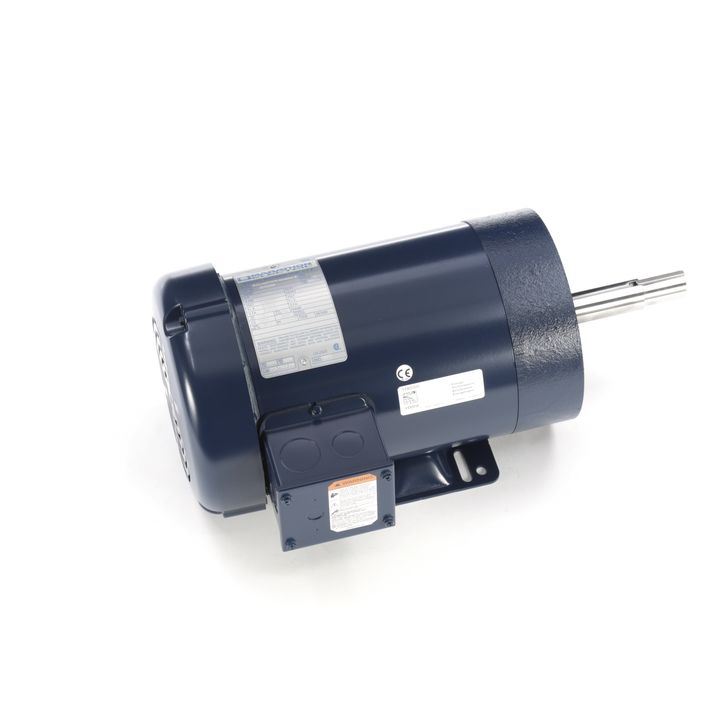

Marathon Electric GT3107, 2 Hp, 1800 Rpm, 145JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 145TTFR16037.

GT3107, 2 Hp, 1800 Rpm, 145JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 145TTFR16037.

Engineering Data

Nameplate Specifications

Output HP  2 Hp
Output KW  1.49 kW
Frequency  60 Hz
Voltage  230/460 V
Current  5.8/2.9 A
Speed 1745 RPM
Service Factor  1.15
Phases  3
Efficiency  86.5 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  K
Frame  145 JM
Enclosure  TEFC
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6206
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Y
CE  Y
IP Code  43

Technical Specifications

Electrical Type  SQ CAGE IND RUN
Starting Method  ACROSS THE LINE
Poles  4
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  ROLLED STEEL
Shaft Type  JM
Overall Length  16.42 in
Frame Length 8 in
Shaft Diameter  .88 in
Shaft Extension  4.25 in
Assembly/Box Mounting  F1 ONLY
