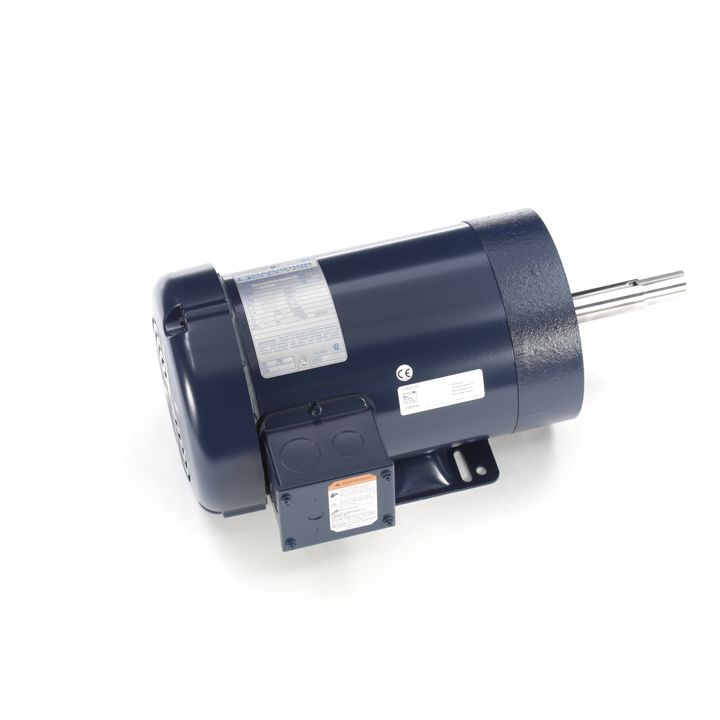

Marathon Electric GT3108, 2 Hp, 1200 Rpm, 184JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 184TTFB6082.

GT3108, 2 Hp, 1200 Rpm, 184JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 184TTFB6082.

Engineering Data

Nameplate Specifications

Output HP  2 Hp
Output KW  1.49 kW
Frequency  60 Hz
Voltage  230/460 V
Current  6/3 A
Speed 1182 RPM
Service Factor  1.15
Phases  3
Efficiency  88.5 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  K
Frame  184 JM
Enclosure  TEFC
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6206
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Y
CE  Y
IP Code  43

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method  LINE OR INVERTER
Poles  6
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  ROLLED STEEL
Shaft Type  JM
Overall Length  18.36 in
Shaft Diameter  .88 in
Shaft Extension  4.25 in
Assembly/Box Mounting  F1/F2 CAPABALE
