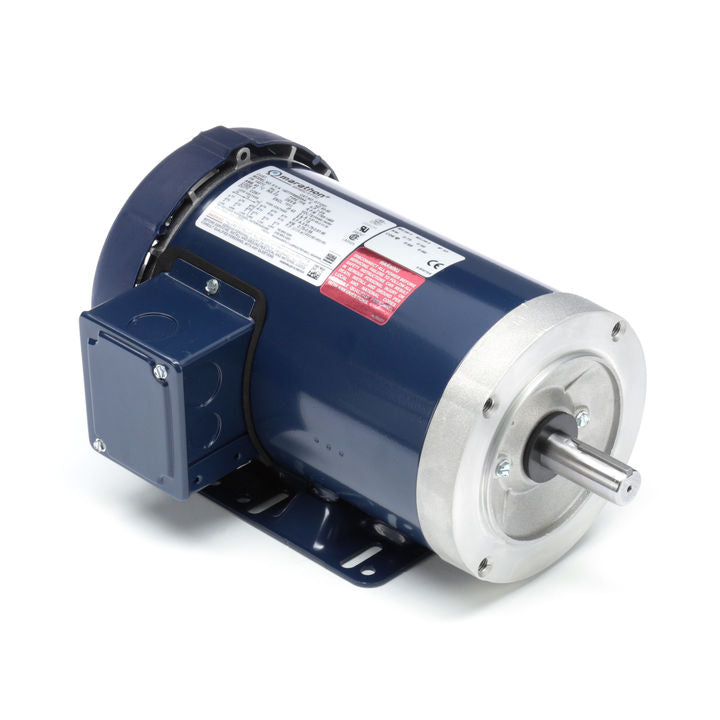

Marathon Electric GT3117, 7 1/2 Hp, 1200 Rpm, 254JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 254TTFCA6082.

GT3117, 7 1/2 Hp, 1200 Rpm, 254JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 254TTFCA6082.

Engineering Data

Output HP : 7.50 HP
Output KW : 5.6 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 21.0/10.5 A
Speed : 1182 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 91 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : G
Frame : 254JMV
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6209
UL : Recognized
CSA : Y CE : Y IP Code : 43
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Line Or Inverter
Poles : 6 Rotation : Reversible
Mounting : Rigid Base Motor
Orientation : HORIZONTAL OR SHAFT DOWN
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Cast Iron
Shaft Type : JM
Overall Length : 26.60 in
Shaft Diameter : 1.25 in
Shaft Extension : 5.25 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856049438
Weight : 325.00 LB
