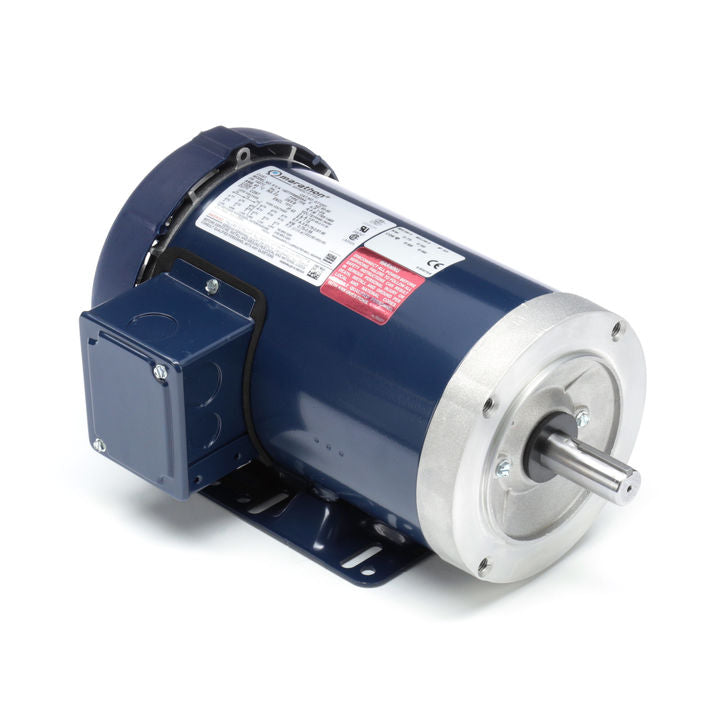

Marathon Electric GT3117A, 7 1/2 Hp, 1200 Rpm, 254JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 254TTFCD6082.

GT3117A, 7 1/2 Hp, 1200 Rpm, 254JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 254TTFCD6082.

Engineering Data

Output HP : 7.50 HP
Output KW : 5.6 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 19.8/9.9 A
Speed : 1182 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 91 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : H
Frame : 254JM
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6209
UL : Listed
CSA : Y CE : Y IP Code : 55
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Line Or Inverter
Poles : 6
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Cast Iron
Shaft Type : JM
Overall Length : 26.15 i
nFrame Length : 10.00 in
Shaft Diameter : 1.25 in
Shaft Extension : 5.5 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856064523
Weight : 308.00 LB
