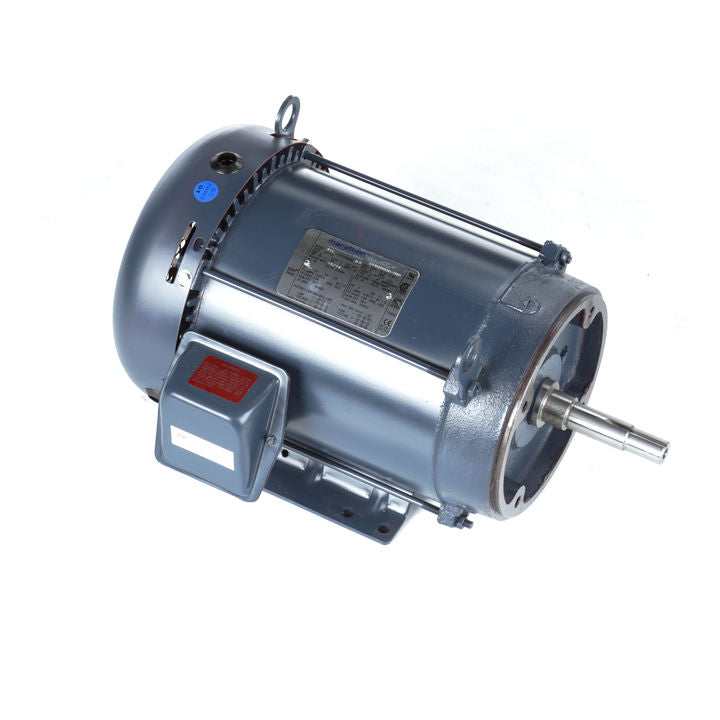

Marathon Electric GT3119, 10 Hp, 1800 Rpm, 215JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 215TTFB6031.

GT3119, 10 Hp, 1800 Rpm, 215JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 215TTFB6031.

Engineering Data

Nameplate Specifications

Output HP  10 Hp
Output KW  7.5 kW
Frequency  60 Hz
Voltage  230/460 V
Current  24.4/12.2 A
Speed 1768 RPM
Service Factor  1.15
Phases  3
Efficiency  91.7 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  G
Frame  215 JM
Enclosure  TEFC
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6309
Opp Drive End Bearing Size  6206
UL  Recognized
CSA  Y
CE  Y
IP Code  43

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method  LINE OR INVERTER
Poles  4
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  ROLLED STEEL
Shaft Type  JM
Overall Length  20.65 in
Shaft Diameter  .88 in
Shaft Extension  4.25 in
Assembly/Box Mounting  F1/F2 CAPABALE
