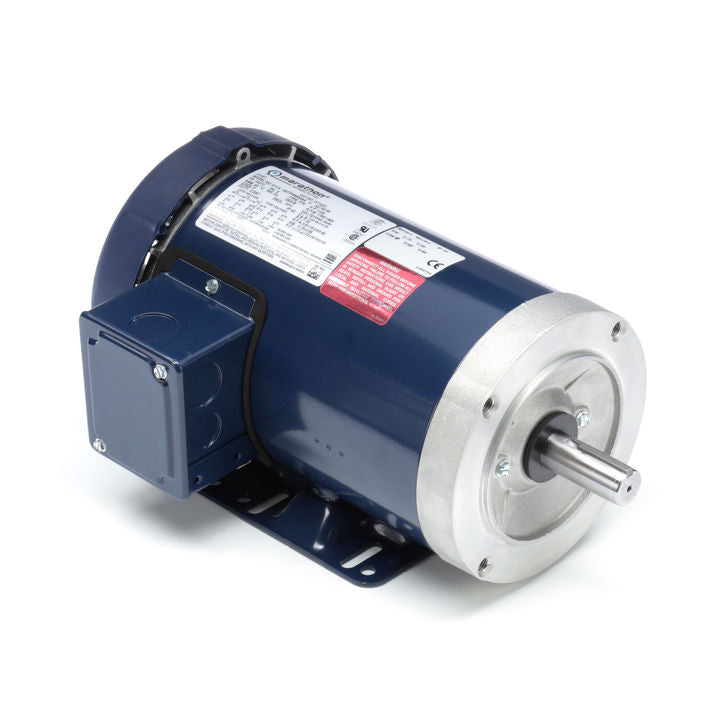

Marathon Electric GT3132, 30 Hp, 1200 Rpm, 326JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 326TTFCA6082.

GT3132, 30 Hp, 1200 Rpm, 326JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 326TTFCA6082.

Engineering Data

Output HP:30 Hp
Output KW:22.4 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:81.0/40.5 A
Speed:1190 rpm
Service Factor:1.15
Phase:3
Efficiency:93 %
Power Factor:75.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:326JMV
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:5312
Opp Drive End Bearing Size:6311
UL:Recognized
CSA:YCE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Wye Start Delta Run Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:.2269 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal Or Shaft Down
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:JM
Overall Length:34.11 in
Shaft Diameter:1.25 in
Shaft Extension:5.25 in
Assembly/Box Mounting:F1/F2 CAPABLE
