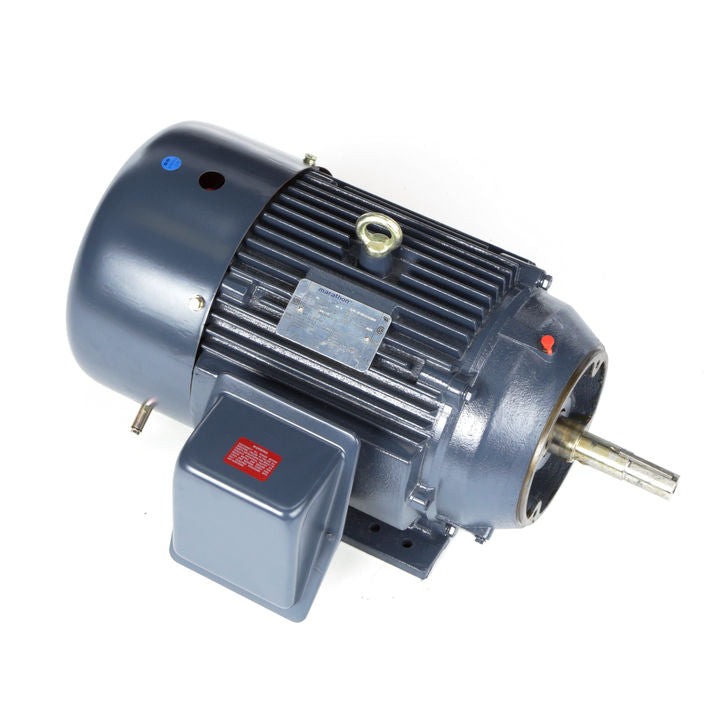

Marathon Electric GT3136A, 50 Hp, 3600 Rpm, 326JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 326TTFCD6007.

GT3136A, 50 Hp, 3600 Rpm, 326JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 326TTFCD6007.

Engineering Data

Output HP : 50 HP
Output KW : 37.0 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 113.0/56.5 A
Speed : 3568 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 93 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : G
Frame : 326JM
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6312
Opp Drive End Bearing Size : 6212
UL : Listed
CSA : Y CE : Y IP Code : 55
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Wye Start Delta Run Or Inverter
Poles : 2
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Cast Iron
Shaft Type : JM
Overall Length : 34.04 in
Frame Length : 11.56 in
Shaft Diameter : 1.296 in
Shaft Extension : 8.1 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856063274
Weight : 732.00 LB
