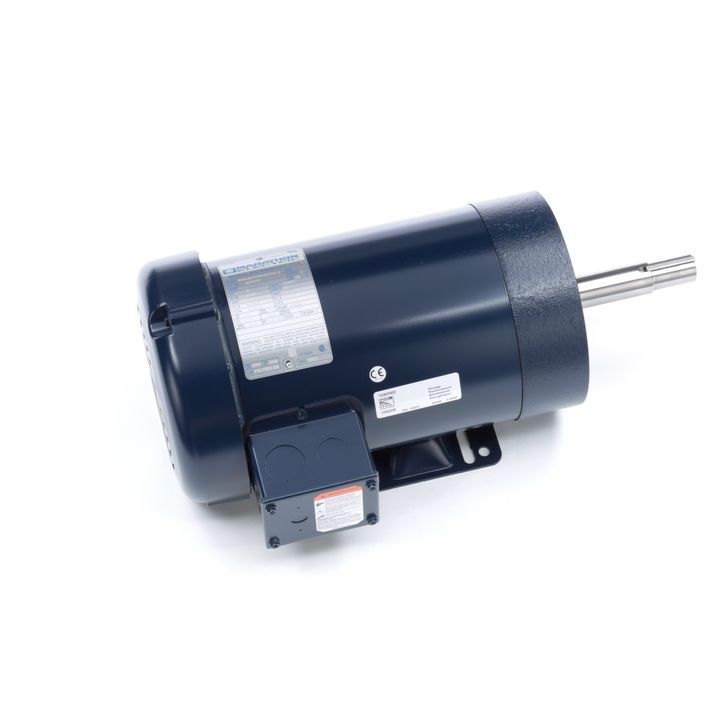

Marathon Electric GT3201, 1 Hp, 1800 Rpm, 143JM FR, 575 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 143TTFR16046.

GT3201, 1 Hp, 1800 Rpm, 143JM FR, 575 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 143TTFR16046.

Engineering Data

Output HP:1 Hp
Output KW:0.75 kW
Frequency:60 Hz
Voltage:575 V
Current:1.3 A
Speed:1765 rpm
Service Factor:1.15
Phase:3
Efficiency:85.5 %
Power Factor:68
Duty:Continous
Insulation Class:F
Design Code:B
KVA Code:P
Frame:143JMV
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:YCE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:4
Rotation:Reversible
Resistance Main:11.8 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal Or Shaft Down
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:JM
Overall Length:16.00 in
Frame Length:8.56 in
Shaft Diameter:0.875 in
Shaft Extension:4.25 in
Assembly/Box Mounting:F1 ONLY
