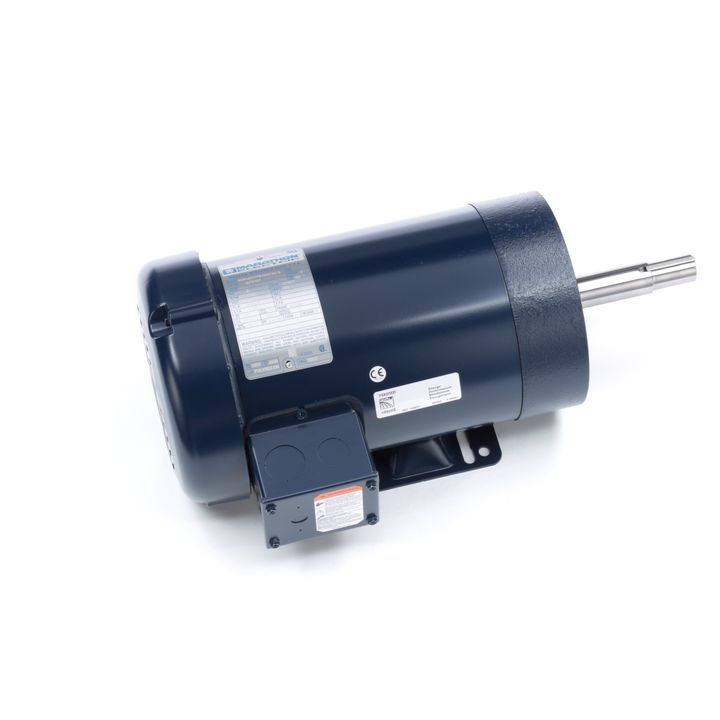

Marathon Electric GT3202, 1 Hp, 1200 Rpm, 145JM FR, 575 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 145TTFR16085.

GT3202, 1 Hp, 1200 Rpm, 145JM FR, 575 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 145TTFR16085.

Engineering Data

Output HP:1 Hp
Output KW:0.75 kW
Frequency:60 Hz
Voltage:575 V
Current:1.5 A
Speed:1160 rpm
Service Factor:1.15
Phase:3
Efficiency:82.5 %
Power Factor:60
Duty:Continous
Insulation Class:F
Design Code:B
KVA Code:L
Frame:145JM
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:Y
IP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:JM
Overall Length:17.00 in
Frame Length:9.56 in
Shaft Diameter:0.875 in
Shaft Extension:4.25 in
Assembly/Box Mounting:F1 ONLY
