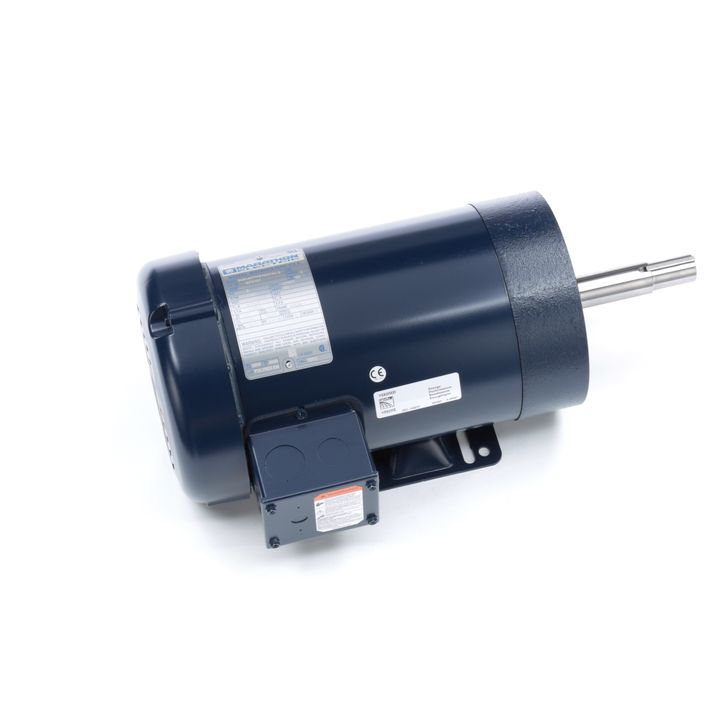

Marathon Electric GT3205A, 1 1\2 Hp, 1200 Rpm, 182JM FR, 575 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 182TTFBD6092

GT3205A, 1 1\2 Hp, 1200 Rpm, 182JM FR, 575 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 182TTFBD6092

Engineering Data

Output HP:1.50 Hp
Output KW:1.12 kW
Frequency:60 Hz
Voltage:575 V
Current:1.8 A
Speed:1175 rpm
Service Factor:1.15
Phase:3
Efficiency:87.5 %
Power Factor:70
Duty:CONTINUOUS
Insulation Class:F3
Design Code:A
KVA Code:N
Frame:182JM
Enclosure:TEFC
Thermal Protection:NOT
Ambient Temperature:40 °C
Drive End Bearing Size:6307
Opp Drive End Bearing Size:6205
UL:NO LETTER - ME,WUXI TEFC BLUEWHALE CLASS 1 DIV. 2 UL LISTED
CSA:YCE:Y
IP Code:43
Hazardous Location:DIVISION 2 T2B
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:LINE OR INVERTER
Poles:6
Rotation:REV
Resistance Main:6.995 Ohms
Mounting:RIGID
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:ROLLED STEEL
Shaft Type:JM
Shaft Diameter:1.25 in
Assembly/Box Mounting:F1/F2 CAPABLE
