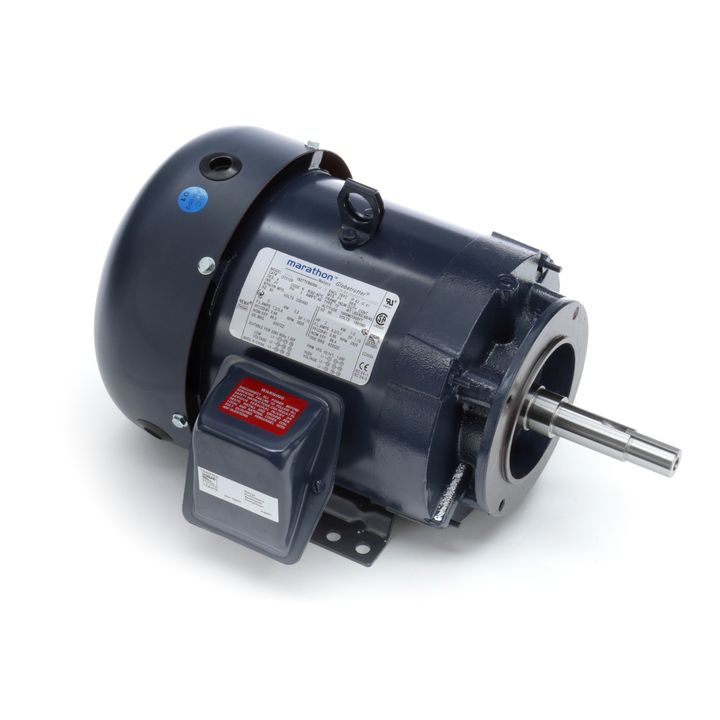

Marathon Electric GT3220A, 10 Hp, 1200 Rpm, 256JM FR, 575 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 256TTFCD6092.

GT3220A, 10 Hp, 1200 Rpm, 256JM FR, 575 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 256TTFCD6092.

Engineering Data

Output HP:10 Hp
Output KW:7.5 kW
Frequency:60 Hz
Voltage:575 V
Current:10.3 A
Speed:1180 rpm
Service Factor:1.15
Phase:3
Efficiency:91 %
Power Factor:80.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:256JM
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6309
Opp Drive End Bearing Size:6209
UL:Listed
CSA:Y
CE:YIP Code:55
Hazardous Location:DIVISION 2 T2B
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:1.216 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:JM
Overall Length:27.89 in
Frame Length:11.73 in
Shaft Diameter:1.375 in
Shaft Extension:5.75 in
Assembly/Box Mounting:F1/F2 CAPABLE
