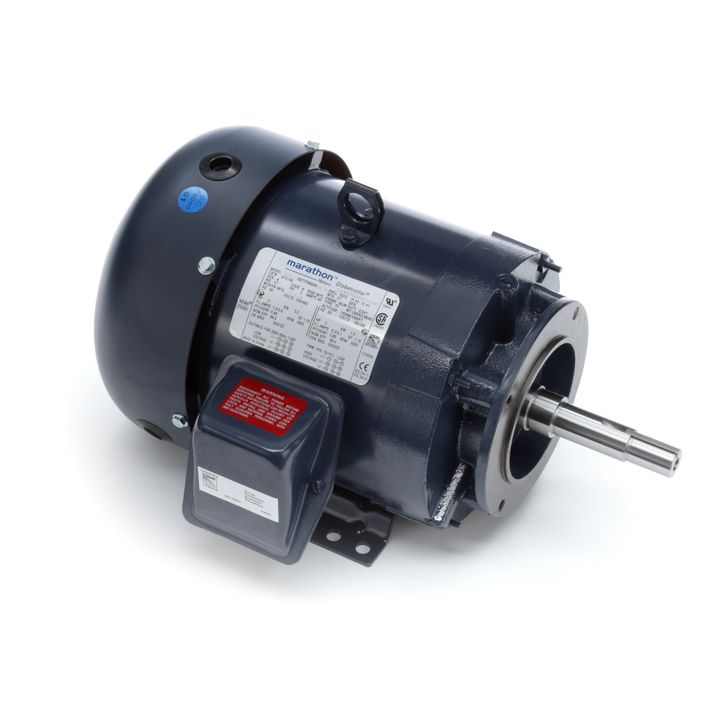

Marathon Electric GT3221, 15 Hp, 3600 Rpm, 254JM FR, 575 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 254TTFCA6008.

GT3221, 15 Hp, 3600 Rpm, 254JM FR, 575 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 254TTFCA6008.

Engineering Data

Nameplate Specifications

Output HP  15 Hp
Output KW  11.2 kW
Frequency  60 Hz
Voltage  575 V
Current  14 A
Speed 3560 RPM
Service Factor  1.15
Phases  3
Efficiency  92.4 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  G
Frame  215JM
Enclosure  TEFC
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6209
Opp Drive End Bearing Size  6209
UL  Recognized
CSA  Y
CE  Y
IP Code  43

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method  LINE OR INVERTER
Poles 2
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type  JM
Overall Length 26.6 in
Shaft Diameter  1.25 in
Shaft Extension  5.25 in
Assembly/Box Mounting  F1/F2 CAPABALE
