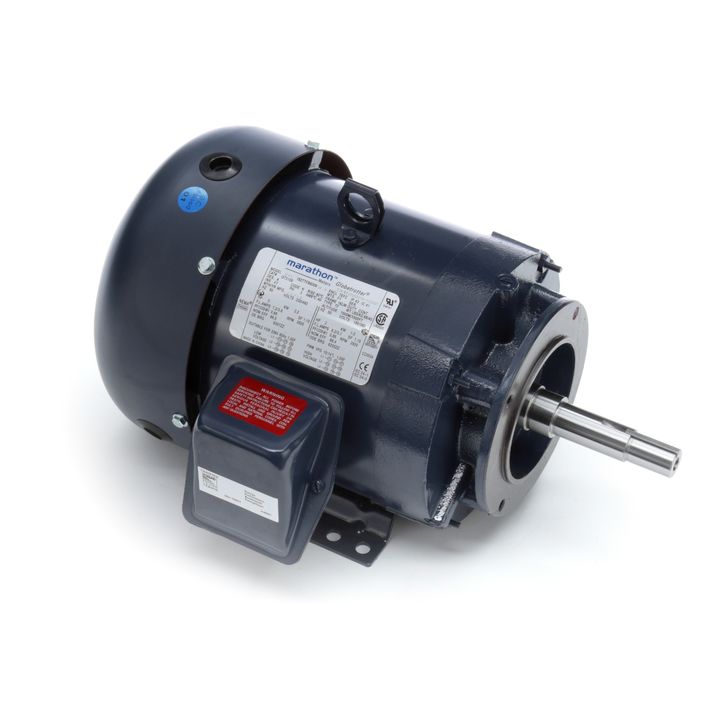

Marathon Electric GT3226A, 20 Hp, 1200 Rpm, 286JM FR, 575 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 286TTFCD6092.

GT3226A, 20 Hp, 1200 Rpm, 286JM FR, 575 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 286TTFCD6092.

Engineering Data

Output HP:20 Hp
Output KW:14.9 kW
Frequency:60 Hz
Voltage:575 V
Current:20.8 A
Speed:1180 rpm
Service Factor:1.15
Phase:3
Efficiency:91.7 %
Power Factor:79
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:286JM
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6311
Opp Drive End Bearing Size:6211
UL:Listed
CSA:Y
CE:Y
IP Code:55
Hazardous Location:DIVISION 2 T2B
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:.5617 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:JM
Overall Length:29.02 in
Frame Length:12.91 in
Shaft Diameter:1.26 in
Shaft Extension:5.5 in
Assembly/Box Mounting:F1/F2 CAPABLE
