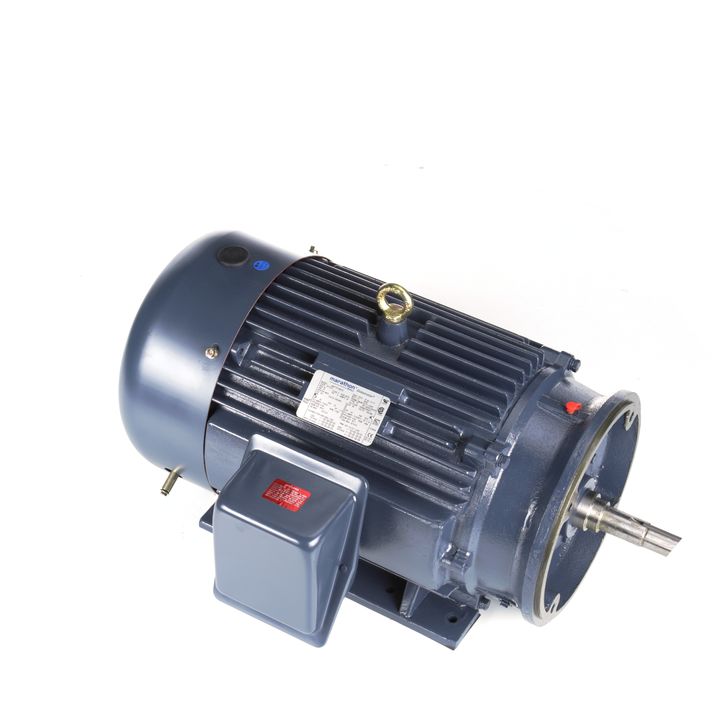

Marathon Electric GT3233A, 40 Hp, 3600 Rpm, 324JM FR, 575 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 324TTFCD6008.

GT3233A, 40 Hp, 3600 Rpm, 324JM FR, 575 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 324TTFCD6008.

Engineering Data

Output HP : 40 HP
Output KW : 30.0 kW
Frequency : 60 Hz
Voltage : 575 V
Current : 37.0 A
Speed : 3565 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 92.4 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : G
Frame : 324JM
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6312
Opp Drive End Bearing Size : 6212
UL : Listed
CSA : Y CE : Y IP Code : 55
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Line Or Inverter
Poles : 2
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Cast Iron
Shaft Type : JM
Overall Length : 32.55 in
Frame Length : 13.07 in
Shaft Diameter : 1.296 in
Shaft Extension : 8.1 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856064424
Weight : 643.00 LB
