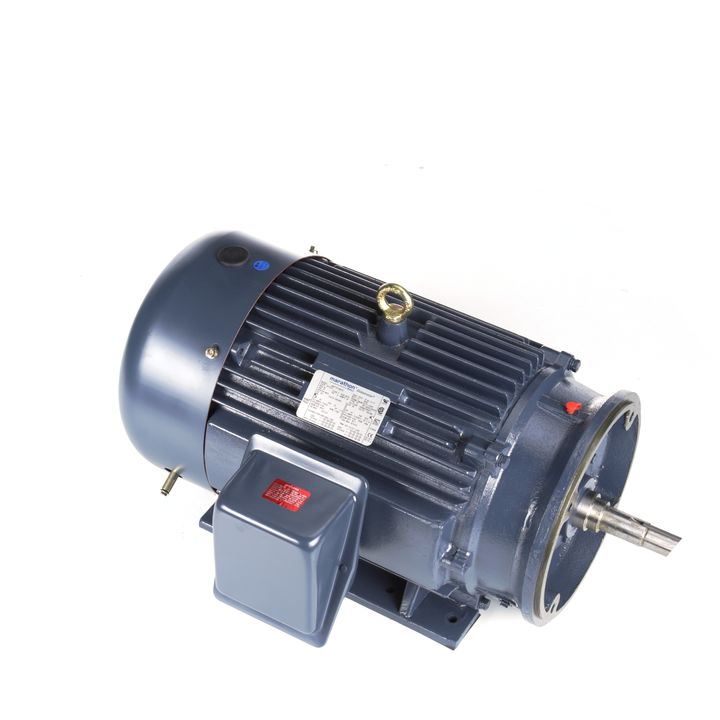

Marathon Electric GT3234A, 40 Hp, 1800 Rpm, 324JM FR, 575 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 324TTFCD6033

GT3234A, 40 Hp, 1800 Rpm, 324JM FR, 575 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 324TTFCD6033

Engineering Data

Output HP:40 Hp
Output KW:30.0 kW
Frequency:60 Hz
Voltage:575 V
Current:38.0 A
Speed:1782 rpm
Service Factor:1.15
Phase:3
Efficiency:94.1 %
Power Factor:84
Duty:Continuous
Insulation Class:F
Design Code:BKVA Code:G
Frame:324JME
nclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6312
Opp Drive End Bearing Size:6212
UL:ListedCSA:Y
CE:YIP Code:55
Hazardous Location:DIVISION 2 T2B
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:4
Rotation:Reversible
Resistance Main:.18 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:JM
Overall Length:32.55 in
Frame Length:13.07 in
Shaft Diameter:1.375 in
Shaft Extension:8.1 in
Assembly/Box Mounting:F1/F2 CAPABLE
