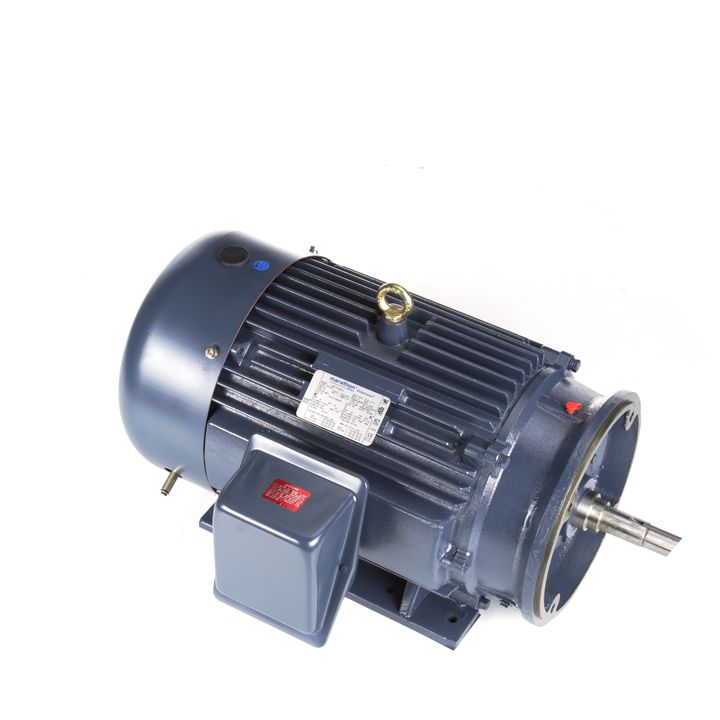

Marathon Electric GT3236, 326TTFCA6008, 50 Hp, 3600 Rpm, 326JM FR, 575 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM,

GT3236, 326TTFCA6008, 50 Hp, 3600 Rpm, 326JM FR, 575 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM,

Engineering Data

Nameplate Specifications

Output HP 50 Hp
Output KW 30 kW
Frequency 60 Hz
Voltage 575 V
Current 44.5 A
Speed 3568 RPM
Service Factor 1.15
Phases 3
Efficiency 93 %
Duty CONTINUOUS
Insulation Class F
Design Code B
KVA Code G
Frame 326JM
Enclosure TEFC
Overload Protector NOT
Ambient Temperature 40 °C
Drive End Bearing Size 6212
Opp Drive End Bearing Size 6212
UL Recognized
CSA Y
CE Y
IP Code 43

Technical Specifications

Electrical Type SQ CAGE INV RATED
Starting Method LINE OR INVERTER
Poles 2
Rotation REV
Mounting RIGID
Motor Orientation HORIZONTAL
Drive End Bearing BALL
Opp Drive End Bearing BALL
Frame Material CAST IRON
Shaft Type JM
Overall Length 34.11 in
Shaft Diameter 1.25 in
Shaft Extension 5.25 in
Assembly/Box Mounting F1/F2 CAPABALE
