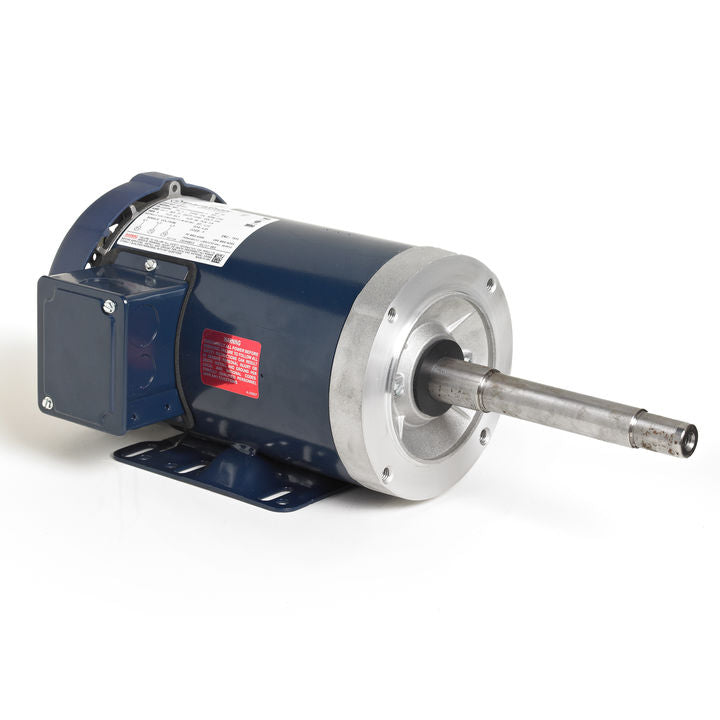

Marathon Electric GT3304, 1 1/2 Hp, 1800 Rpm, 145JP FR, 200 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JP, 143TTFR16060.

GT3304, 1 1/2 Hp, 1800 Rpm, 145JP FR, 200 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JP, 143TTFR16060.

Engineering Data

Nameplate Specifications

Output HP  1.5 Hp
Output KW  1.12 kW
Frequency  60 Hz
Voltage  200 V
Current  5.3 A
Speed 1755 RPM
Service Factor  1.15
Phases  3
Efficiency  86.5 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  A
KVA Code  P
Frame  145JP
Enclosure  TEFC
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6206
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Y
CE  Y
IP Code  43

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method  LINE OR INVERTER
Poles 4
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL OR SHAFT DOWN
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  ROLLED STEEL
Shaft Type  JM
Overall Length 19.63 in
Frame Length 9.06
Shaft Diameter  .88 in
Shaft Extension  7.31 in
Assembly/Box Mounting  F1 Only
