Industrial Motors

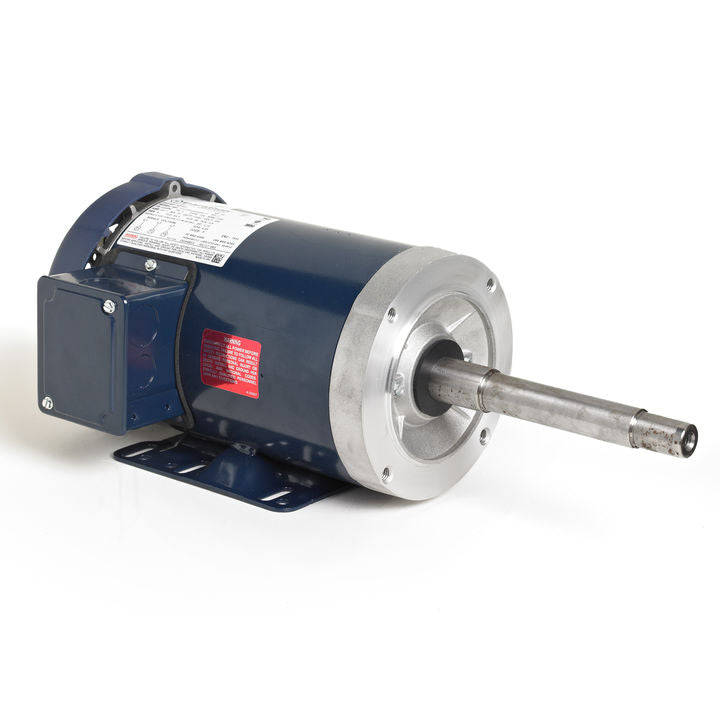

Marathon Electric GT3408A, 2 Hp, 1200 Rpm, 184JP FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JP, 184TTFBD6085.

Marathon Electric GT3408A, 2 Hp, 1200 Rpm, 184JP FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JP, 184TTFBD6085.

$859.74
$859.74
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$859.74 $816.76
Sale

GT3408A, 2 Hp, 1200 Rpm, 184JP FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JP, 184TTFBD6085.

Engineering Data

Output HP:2 Hp
Output KW:1.5 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:6.0/3.0 A
Speed:1173 rpm
Service Factor:1.15
Phase:3
Efficiency:88.5 %
Power Factor:70
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:K
Frame:184JP
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6307
Opp Drive End Bearing Size:6205
UL:Listed
CSA:Y
IP Code:43
Hazardous Location:DIVISION 2 T2B
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:5.35 Ohms
Mounting:Rigid base
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:JP
Shaft Diameter:0.874 in
Assembly/Box Mounting:F1/F2 CAPABLE
