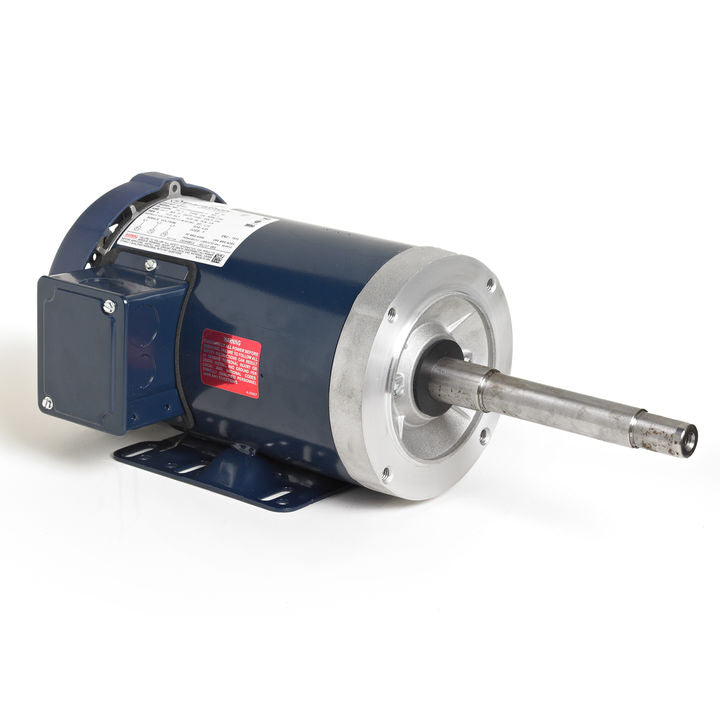

Marathon Electric GT3413, 5 Hp, 1800 Rpm, 184JP FR, 208-230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JP, 184TTFB6037.

GT3413, 5 Hp, 1800 Rpm, 184JP FR, 208-230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JP, 184TTFB6037.

Engineering Data

Nameplate Specifications

Output HP  5 Hp
Output KW  3.7 kW
Frequency  60 Hz
Voltage  230/460 V
Current  12.4/6.2 A
Speed 1740 RPM
Service Factor  1.15
Phases  3
Efficiency  89.5 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  A
KVA Code  L
Frame  184JP
Enclosure  TEFC
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6206
Opp Drive End Bearing Size  6205
UL  Recognized
CSA  Y
CE  Y
IP Code  43

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method  LINE OR INVERTER
Poles 4
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  ROLLED STEEL
Shaft Type  JP
Overall Length  20.04 in
Shaft Diameter  .88 in
Shaft Extension  7.35 In
Assembly/Box Mounting  F1/F2 CAPABALE
