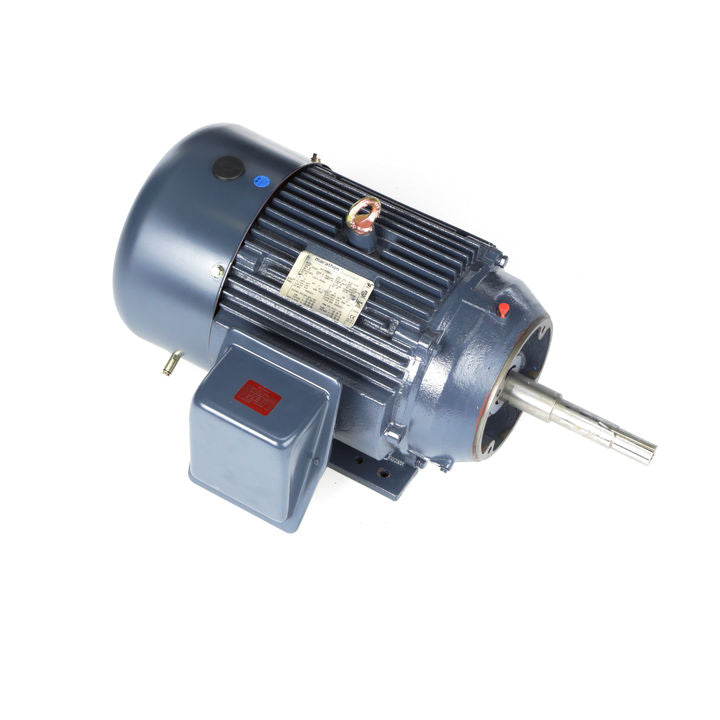

Marathon Electric GT3422A, 15 Hp, 1800 Rpm, 254JP FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JP, 254TTFCD6037.

GT3422A, 15 Hp, 1800 Rpm, 254JP FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JP, 254TTFCD6037.

Engineering Data

Output HP : 15 HP
Output KW : 11.2 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 37.5/18.8 A
Speed : 1772 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 92.4 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : G
Frame : 254JP
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6209
UL : Listed
CSA : Y CE : Y IP Code : 55
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Line Or Inverter
Poles : 4
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Cast Iron
Shaft Type : JP
Overall Length : 29.02 in
Frame Length : 10.00 in
Shaft Diameter : 1.25 in
Shaft Extension : 8.37 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856063267
Weight : 365.00 LB
