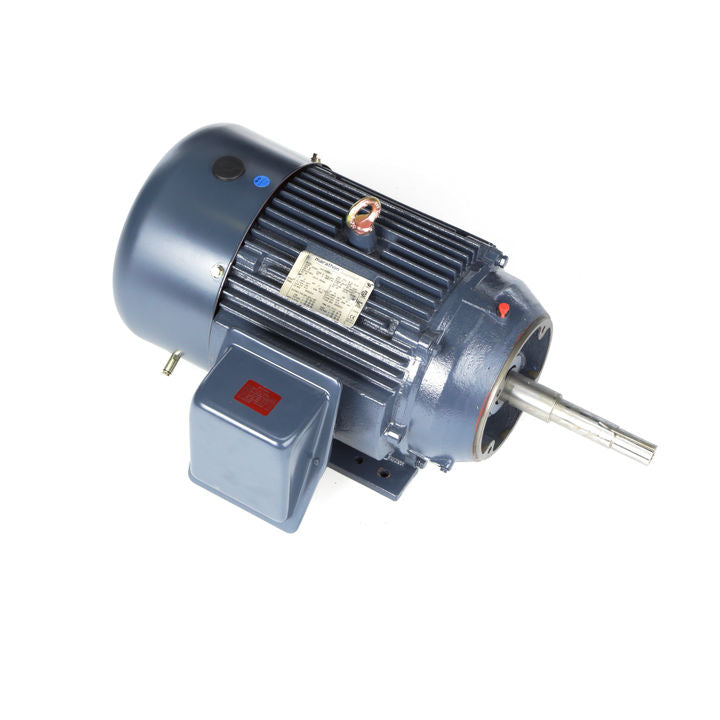

Marathon Electric GT3431, 30 Hp, 1800 Rpm, 286JP FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JP, 286TTFCA6037.

GT3431, 30 Hp, 1800 Rpm, 286JP FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JP, 286TTFCA6037.

Engineering Data

Output HP:30 Hp
Output KW:22.4 kW
Frequency:60 Hz
Voltage:230/460 V
Current:73.0/36.5 A
Speed:1780 rpm
Service Factor:1.15
Phase:3
Efficiency:94.1 %
Power Factor:81.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:286JP
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6311
Opp Drive End Bearing Size:6210
UL:Recognized
CSA:Y
CE:Y
IP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Wye Start Delta Run Or Inverter
Poles:4
Rotation:Reversible
Resistance Main:.215 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:JP
Overall Length:35.00 in
Shaft Diameter:1.25 in
Shaft Extension:8.15 in
Assembly/Box Mounting:F1/F2 CAPABLE
