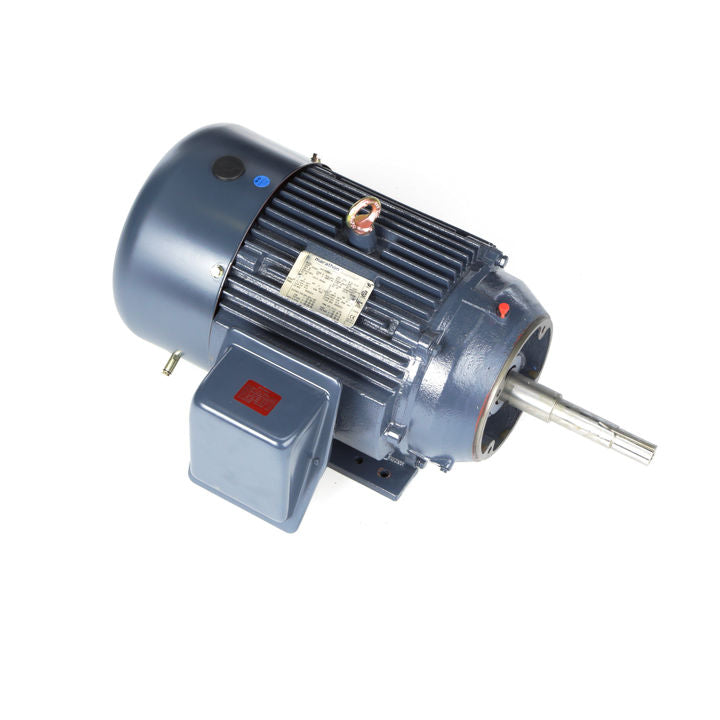

Marathon Electric GT3437A, 50 Hp, 1800 Rpm, 324JP FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JP, 326TTFCD6037.

GT3437A, 50 Hp, 1800 Rpm, 324JP FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JP, 326TTFCD6037.

Engineering Data

Output HP : 50 HP
Output KW : 37.0 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 117.0/58.5 A
Speed : 1780 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 94.5 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : G
Frame : 326JP
Enclosure : Totally Enclosed Fan
Cooled Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6312
Opp Drive End Bearing Size : 6212
UL : Listed
CSA : Y CE : Y IP Code : 55
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Wye Start Delta Run Or Inverter
Poles : 4
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Cast Iron
Shaft Type : JP
Overall Length : 35.42 in
Frame Length : 14.56 in
Shaft Diameter : 1.375 in
Shaft Extension : 10.98 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856063038
Weight : 698.00 LB
