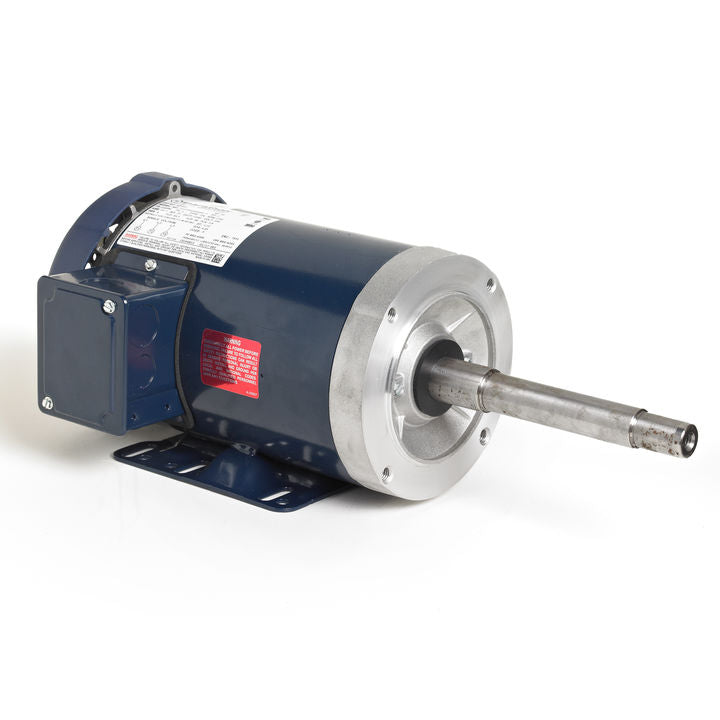

Marathon Electric GT3509, 3 Hp, 3600 Rpm, 182JP FR, 575 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JP, 182TTFB6013

GT3509, 3 Hp, 3600 Rpm, 182JP FR, 575 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JP, 182TTFB6013

Engineering Data

Output HP:3 Hp
Output KW:2.2 kW
Frequency:60 Hz
Voltage:575 V
Current:3.2 A
Speed:3505 rpm
Service Factor:1.15
Phase:3
Efficiency:86.5 %
Power Factor:86
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:H
Frame:182JP
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:2
Rotation:Reversible
Resistance Main:3.45 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:JP
Overall Length:19.07 in
Frame Length:11.41 in
Shaft Diameter:0.874 in
Shaft Extension:5.937 in
Assembly/Box Mounting:F1/F2 CAPABLE
