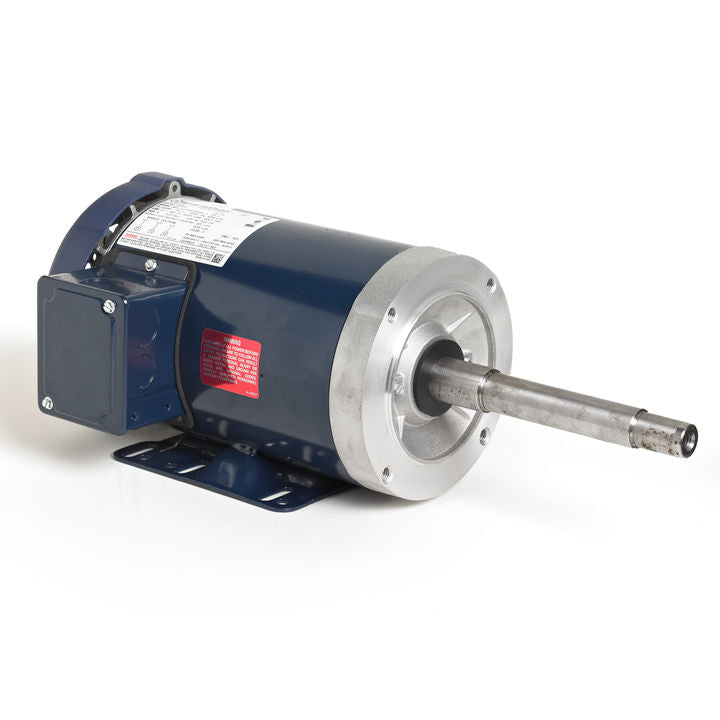

Marathon Electric GT3516A, 7 1/2Hp, 1800 Rpm, 213JP FR, 575 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JP, 213TTFBD6038.

GT3516A, 7 1/2Hp, 1800 Rpm, 213JP FR, 575 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JP, 213TTFBD6038.

Engineering Data

Nameplate Specifications

Output HP  7.5 Hp
Output KW  5.6 kW
Frequency  60 Hz
Voltage  575 V
Current  7.7 A
Speed 1773 RPM
Service Factor  1.15
Phases  3
Efficiency  91.7 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code H
Frame  213JPV
Enclosure  TEFC
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6307
Opp Drive End Bearing Size  6206
UL  Recognized
CSA  Y
CE  Y
IP Code  43

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method  LINE OR INVERTER
Poles 4
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  ROLLED STEEL
Shaft Type  JP
Overall Length  24.54 in
Shaft Diameter 1.25 in
Shaft Extension  8.14In
Assembly/Box Mounting  F1/F2 CAPABLE
